Size 28mm NEMA 11 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 50mm/100mm/150mm

Size 28mm NEMA 11 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 50mm/100mm/150mm

$35.00 – $39.50

In Stock:

20

Model: 28AI34-0754E-N52

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 11 Linear Stepper Motor Lead 2mm: This size 28mm model is a NEMA 11 External type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 0.75A rated current. It is integrated with a Φ5mm diameter, 50mm/100mm/150mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Linear Stepper Motor Lead 2mm Specification

NEMA 11 Linear Stepper Motor Lead 2mm

  • Part Number: 28AI34-0754E-50N52
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.75A
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 34mm
  • Lead Screw Length: 50mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 180g
  • Stepper Drive: FLKH2D1228DC

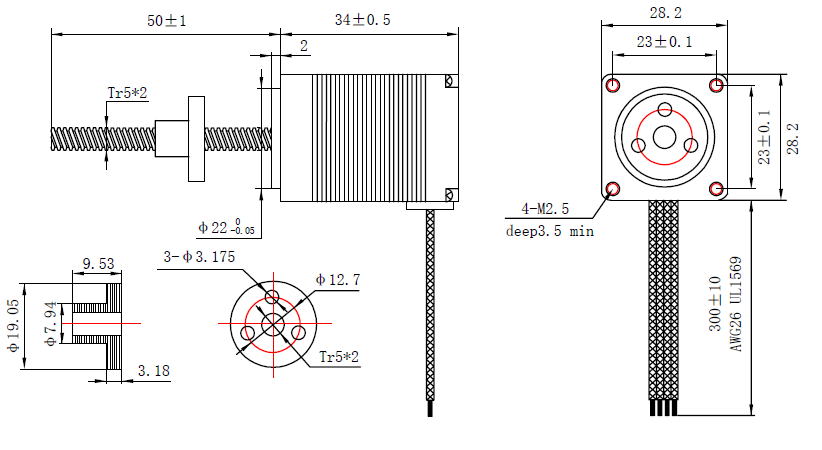

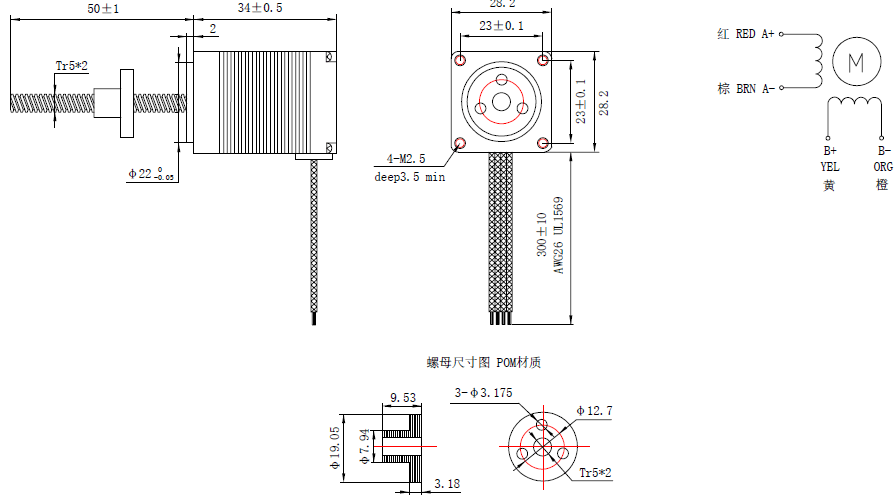

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
