Size 28mm NEMA 11 Linear Actuator Stepper Motor Non-captive Type 51mm Stack Lead 2mm Length 200mm

$48.00

In Stock:

5

Model: 28AI51-0674N-200N52

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Linear Stepper Motor 51mm: This size 28mm model is a NEMA 11 Non-captive type lead screw linear actuator stepper motor with a 51mm body length, 1.8 degree step angle and 0.75A rated current. It is integrated with a Φ5mm diameter, 200mm lead screw length, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Linear Stepper Motor 51mm Specification

  • Part Number: 28AI51-0674N-200N52
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.67A
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 51mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 300g

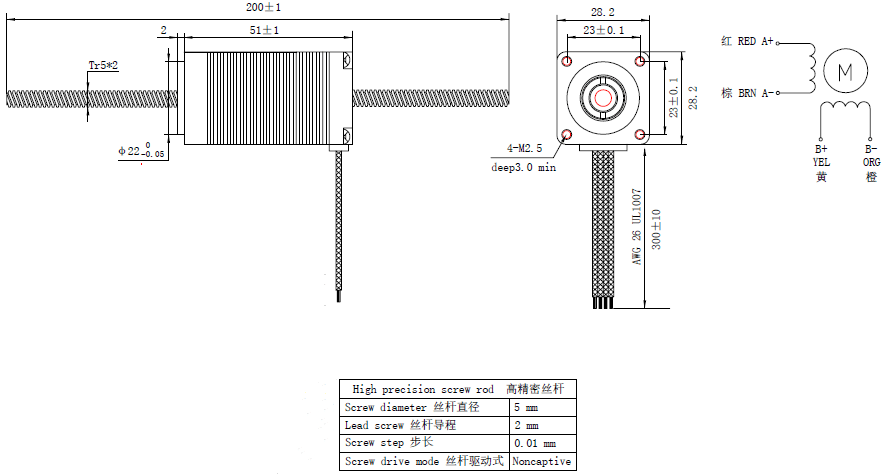

Overall Size

NEMA 11 Linear Stepper Motor 51mm
