Size 28mm NEMA 11 High Precision Low Backlash Planetary Gearbox Reduction Stepper Motor

Size 28mm NEMA 11 High Precision Low Backlash Planetary Gearbox Reduction Stepper Motor

Price range: $70.00 through $85.00

In Stock:

10

Model: 28AI51-0674S-FGS

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

NEMA 11 High Precision Geared Stepper Motor: This small geared stepper motor has a frame size 28x28mm with rated current 0.67A, integrated with a HP series high precision square planetary gearbox that has a wide range of gear ratio 4 to 70. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 11 High Precision Geared Stepper Motor Specification

  • Part Number: 28AI51-0674S-FG
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.12Nm w/o gearbox
  • Rated Current/phase: 0.67A
  • Insulation Class: B 130°C
  • Frame Size: 28x28mm
  • Motor Length: 51mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-70:1
  • Efficiency: 94%-96%
  • Backlash at No-load: 10arcmin-15arcmin
  • Gearbox Length: 38mm-46.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm

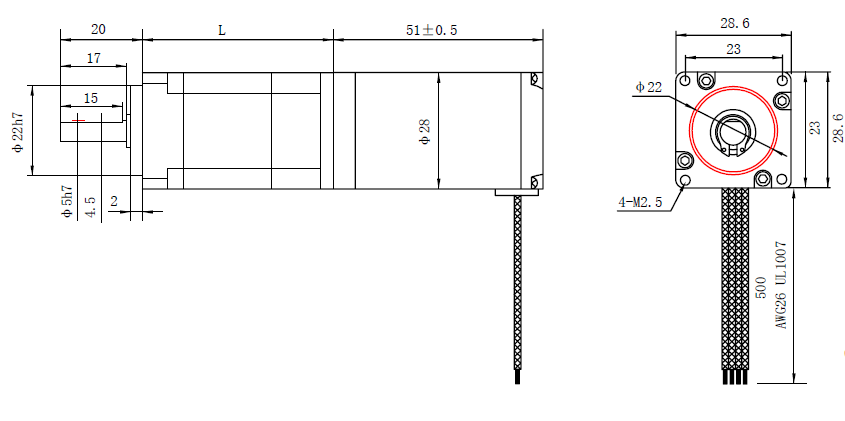

Overall Size

NEMA 11 High Precision Geared Stepper Motor
