Size 28mm NEMA 11 Dual Shaft Planetary Gearbox Stepper Motor Gear Ratio 14:1 with Rear Shaft

Size 28mm NEMA 11 Dual Shaft Planetary Gearbox Stepper Motor Gear Ratio 14:1 with Rear Shaft

$30.00

In Stock:

10

Model: 28AI51-0674D-PG14

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Geared Stepper Motor Dual Shaft: This small geared dual shaft stepper motor has a frame size 28-51mm with rated current 0.67a, integrated with a planetary gearbox of gear ratio 14:1 & a length of 9.5mm rear shaft. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 11 Geared Stepper Motor Dual Shaft Specification

NEMA 11 Geared Stepper Motor Dual Shaft

  • Part Number: 28AI51-0674D-PG14
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.12Nm w/o gearbox
  • Rated Current/phase: 0.67A
  • Frame Size: 28x28mm
  • Motor Length: 51mm
  • Number of Leads: 4
  • Lead Length: 1200mm
  • Gearbox Type: Planetary
  • Gear Ratio: 14:1
  • Efficiency: 81%
  • Backlash at No-load: 1.5deg
  • Gearbox Length: 36.8mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Stepper Drive: FLKH2D1228DC

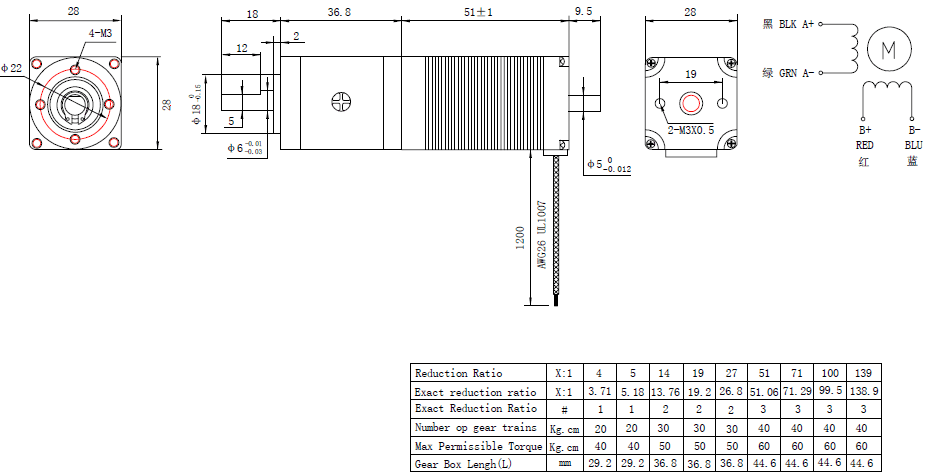

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
