NEMA 23 Double Shaft Stepper Motor 3.6Nm 4.0A 57-113mm with Rear Shaft

$35.00

In Stock:

50

Model: 57HD9207Y-15B

Weight: 1.7KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

50 in stock (can be backordered)

High Torque NEMA 23 Double Shaft Stepper Motor: This electric motor is a double shaft NEMA 23 stepper motor with body length 113mm. It has a steg angle 1.8degree (200 steps per revolution), each phase drawing current 4.0A and generating a strong torque upto 3.6Nm. A length of 15mm rear shaft is available.

High Torque NEMA 23 Double Shaft Stepper Motor Specification

  • Part Number: 57HD9207Y-15B
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 3.6Nm
  • Rated Current/phase: 4.0A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length(L): 113mm
  • Front Shaft Diameter: Φ8mm
  • Front Shaft Length: 21mm
  • Rear Shaft Diameter: Φ8mm
  • Rear Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 1.7kg

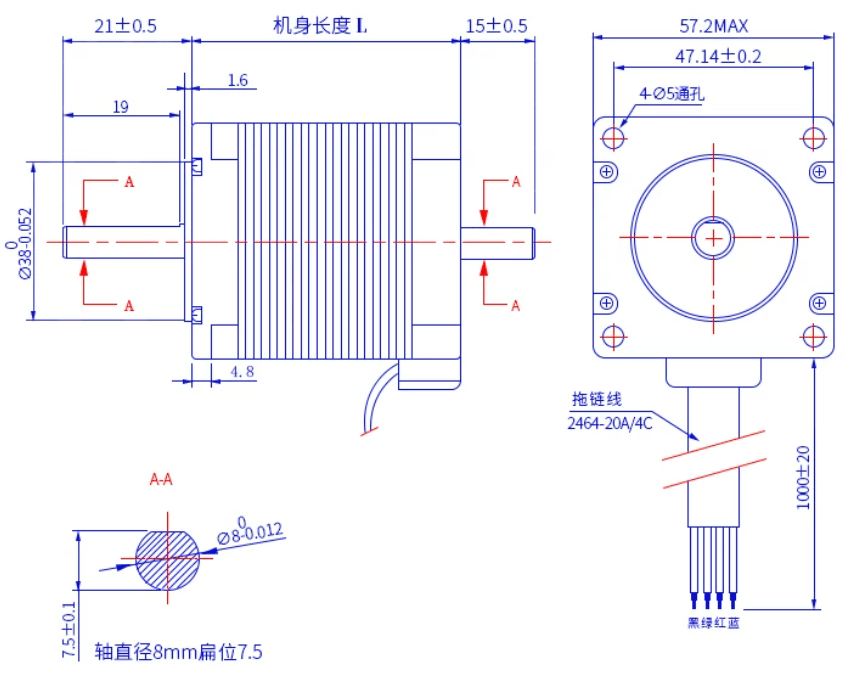

Overall Size

High Torque NEMA 23 Double Shaft Stepper Motor

A+Black, A-Green, B+Red, B-Blue
