63mm DC Motor Brushed 24V 3500RPM 0.15Nm 55W 63x95mm

$35.00

In Stock:

10

Model: 63AI95-2435

Weight: 0.95KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

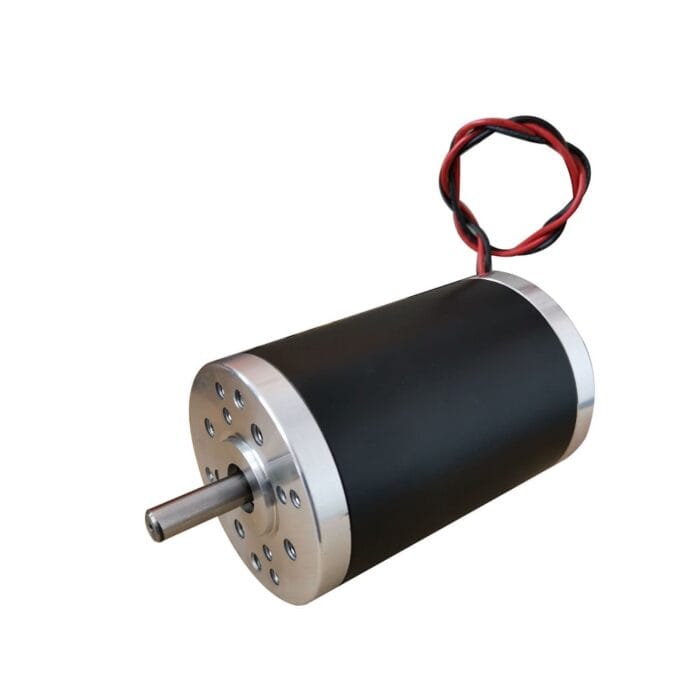

This round size 63mm DC Motor is a standard 24 voltage brushed DC motor with single shaft. Generating a high power 50W and a rated torque 0.15Nm at 3000RPM.

DC Motor 50W Specification:

  • Part Number: 63AI95-2435
  • Rated Voltage: 24V
  • Rated Current: 3.0A
  • Rated Power: 50W
  • No-loaded Current: 0.5 Max
  • No-loaded Speed: 3500RPM
  • Rated Speed: 3000RPM
  • Rated Torque: 0.15Nm
  • Insulation Class: B
  • Frame Size: Φ63mm
  • Motor Length: 95mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Weight: 0.95kg

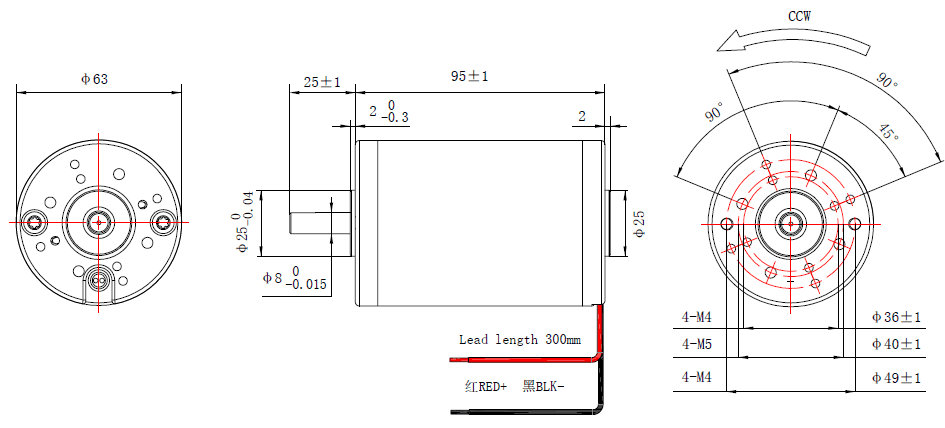

Overall Size

DC Motor 50W
