45mm-24v-brake-dc-motor-5000rpm-0-07nm

45mm DC Motor 24V 5000RPM 0.045Nm 20W 45x68mm with Power-off Brake

$45.00

In Stock:

50

Model: 45WS68-2450-YS

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

50 in stock (can be backordered)

45mm 24V Brake DC Motor: This round size Φ45mm diameter motor is a standard 24 voltage brushed DC motor, generating a power 20W and a rated torque 0.07Nm at 3750RPM. A 24V power-off brake is installed on the rear part of the motor for special applications such as repeated movement or vertical motion control.

45mm 24V Brake DC Motor Specifications:

  • Part Number: 45WS68-2450-YS
  • Rated Voltage: 24V
  • Rated Curent: 0.9A
  • Rated Power: 20W
  • No-loaded Speed: 5000RPM
  • Rated Speed: 3750RPM
  • Rated Torque: 0.07Nm
  • Insulation Class: B
  • Frame Size: Φ45mm
  • Motor Length: 68mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 25mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Brake Type: Electromagnetic
  • Brakge Voltage: 24VDC
  • Weight: 0.45kg

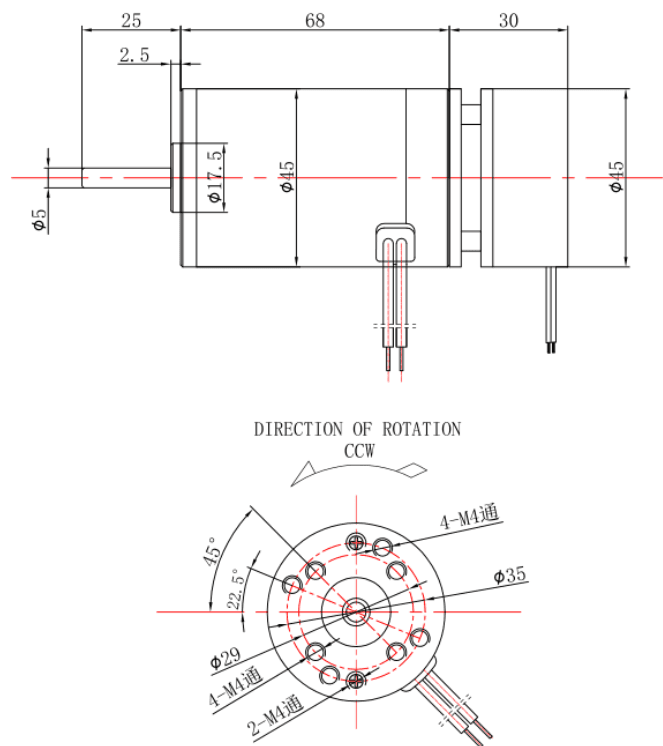

Overall Size

45mm 24V Brake DC Motor
