Size 46mm NEMA 18 Pancake Stepper Motor Round 0.1Nm 1.0A 46x15.4mm Ultrathin Body

Size 46mm NEMA 18 Pancake Stepper Motor Round 0.1Nm 1.0A 46×15.4mm Ultrathin Body

$15.50

In Stock:

10

Model: 46AI15-1004S

Weight: 0.05KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 18 Stepper Motor Pancake: This size 46mm NEMA 18 pancake stepper motor has a ultrathin body length 15.4mm, each phase draws 1.0A current and 0.1Nm holding torque. A diameter Φ4mm with length 10mm output shaft is available.

NEMA 18 Stepper Motor Pancake Specification

  • Part Number: 46AI15-1004S
  • Step Angle: 1.8deg
  • Holding Torque: 0.1Nm
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: Φ46mm
  • Body Length: 15.4mm
  • Shaft Diameter: Φ46
  • Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 50g

Overall Size

NEMA 18 Stepper Motor Pancake

Reviews

There are no reviews yet.

Be the first to review “Size 46mm NEMA 18 Pancake Stepper Motor Round 0.1Nm 1.0A 46×15.4mm Ultrathin Body”

Your email address will not be published. Required fields are marked *

Tag: 0.1nm, 46mm stepper motor, nema 18, pancake stepper motor, ultrathin motor

Related Products

  • nema-17-pancake-stepper-motor-42mm-ultrathin

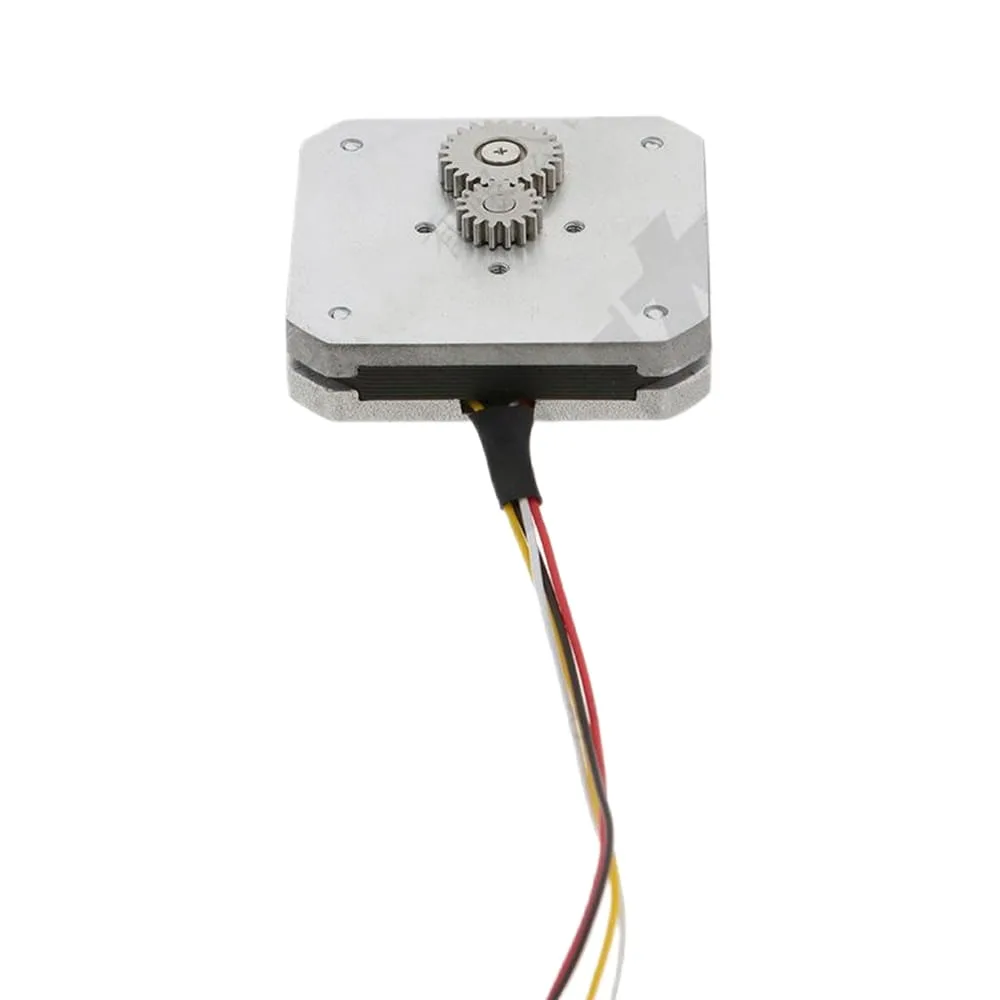

    Size 42mm NEMA 17 Pancake Stepper Motor Round 0.04Nm 0.5A 42×9.8mm Ultrathin Body

    $19.90

  • high-temperature-nema-17-stepper-motor-42-48mm

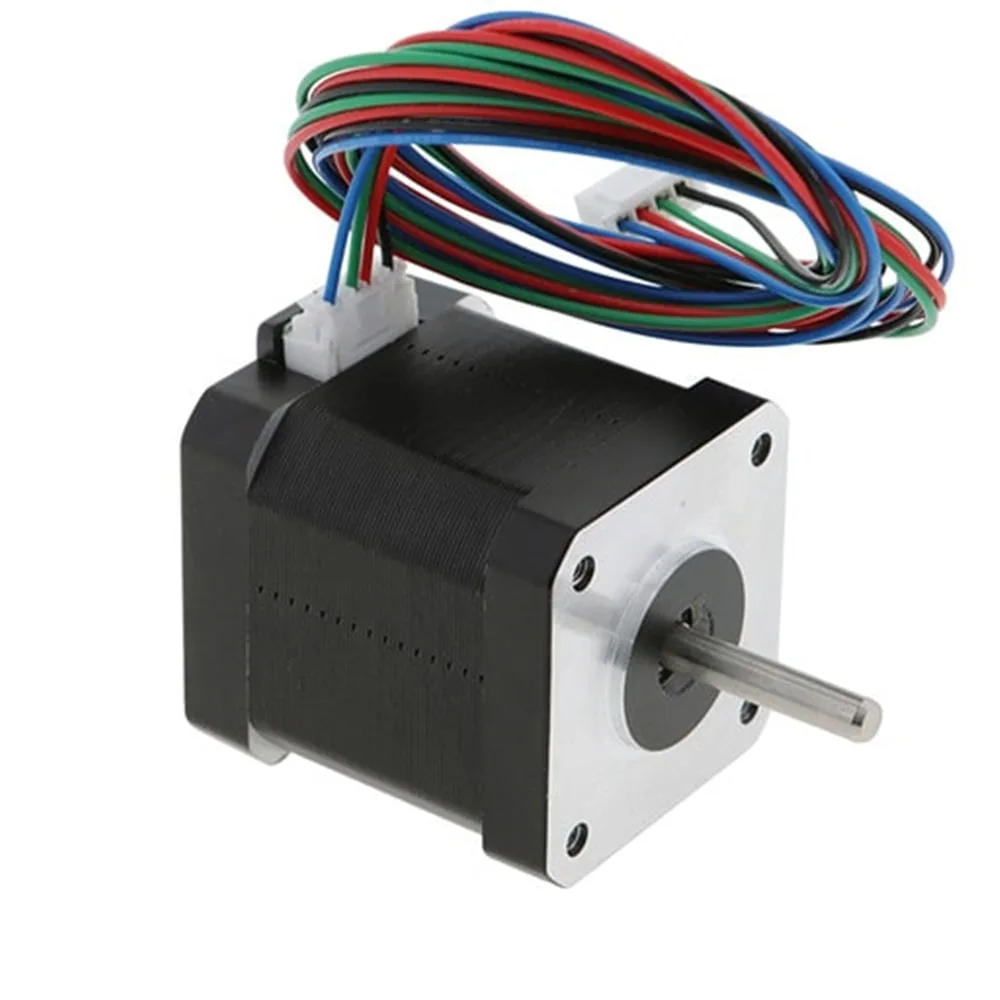

    High Temperature NEMA 17 Stepper Motor 0.6Nm 2.0A 42x48mm Insulation Class H
