Size 46mm NEMA 18 Pancake Stepper Motor Round 0.1Nm 1A 46x15.4mm 16 Teeth Gear

Size 46mm NEMA 18 Pancake Stepper Motor Round 0.1Nm 1A 46×15.4mm 16 Teeth Gear

$20.00

In Stock:

10

Model: 46AI15-1004T

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

46mm Round Stepper Motor: This size 46mm NEMA 18 pancake stepper motor has a ultrathin body length 15.4mm, each phase draws 1.0A current and 0.1Nm holding torque. A 16 teeth gear with 0.4 module is mounted on the shaft.

46mm Round Stepper Motor Specification

46mm Round Stepper Motor

  • Part Number: 46AI15-1004T
  • Step Angle: 1.8deg
  • Holding Torque: 0.1Nm
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: Φ46mm
  • Body Length: 15.4mm
  • Gear Teeth Number: 16
  • Gear Module: 0.4
  • Number of Leads: 4
  • Lead Length: 85mm
  • Weight: 100g
  • Stepper Drive: FLKH2D1228DC

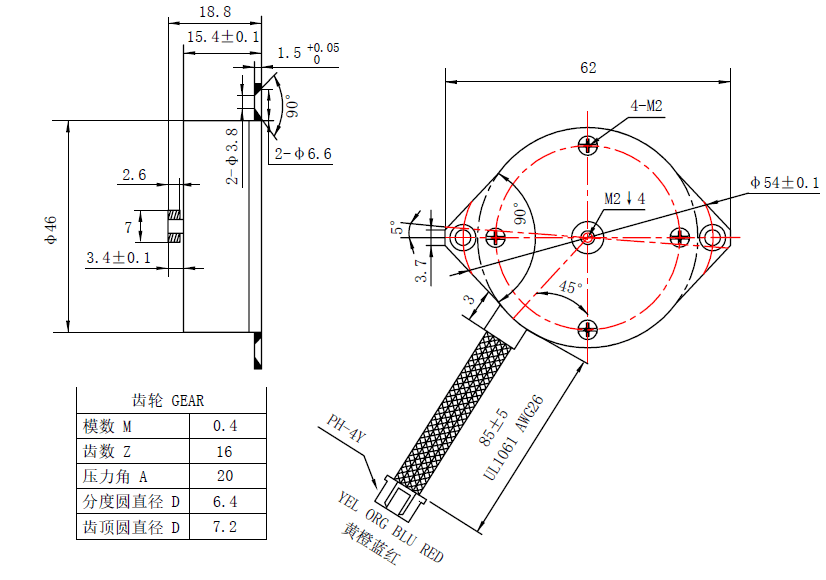

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
