60mm BLDC Motor High Power High Torque

Size 60mm NEMA24 Brushless DC Motor 48V 400W 3000RPM 1.27Nm 60x133mm

$50.00

In Stock:

10

Model: 60AI133-4830

Weight: 1.9KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

60mm BLDC Motor High Power: This size 60mm 3 phase brushless dc motor has a body length 133mm, rated voltage 48v and a moderate rated speed 3000rpm, which can reach 400w power and 1.27Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

60mm BLDC Motor High Power Specification

60mm BLDC Motor High Power

  • Part Number: 60AI133-4830
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 48V
  • Rated Speed: 3000RPM
  • No-loading Speed: 3600RPM
  • Rated Torque: 1.27Nm
  • Rated Curent: 11.5A
  • Rated Power: 400W
  • Insulation Class: B
  • Frame Size: 60x60mm
  • Body Length: 133mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 31mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.9kg

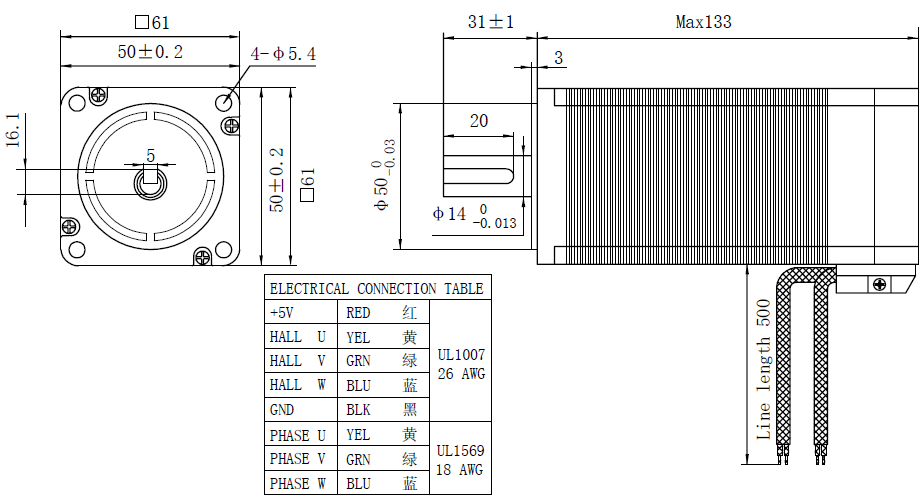

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
