Size 57mm NEMA23 Brushless DC Motor 24V 70W 3000RPM 0.22Nm 57x75mm

Size 57mm NEMA23 Brushless DC Motor 24V 70W 3000RPM 0.22Nm 57x75mm

$28.00

In Stock:

10

Model: 57AI75-2430

Weight: 0.75KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

57mm Brushless DC Motor 70W: This size 57mm 3 phase brushless dc motor has a body length 75mm, rated voltage 24vdc and a moderate rated speed 3000rpm, which can reach 70w power and 0.22Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

57mm Brushless DC Motor 70W Specification

57mm Brushless DC Motor 70W

  • Part Number: 57AI75-2430
  • No. of Phases: 3
  • No. of Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 4200RPM
  • Rated Torque: 0.22Nm
  • Rated Curent: 4.0A
  • Rated Power: 70W
  • Insulation Class: B
  • Frame Size: 57x57mm
  • Body Length: 75mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 26mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.75kg

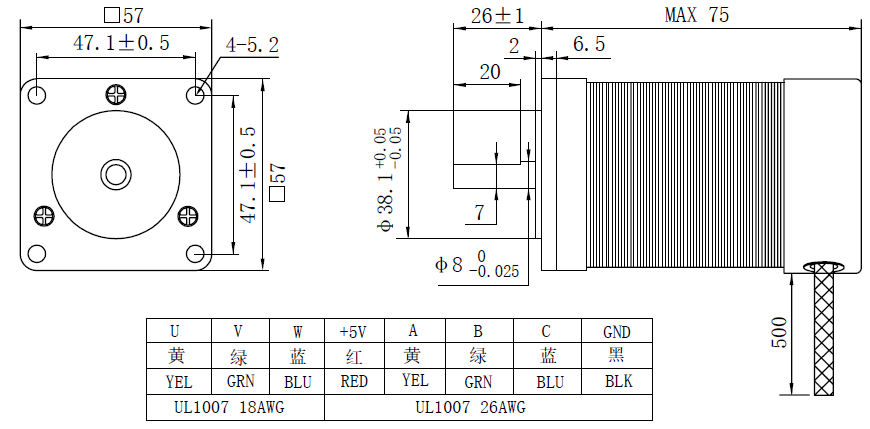

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
