Size 60mm NEMA24 Brushless DC Motor 48V 200W 3000RPM 0.63Nm 60x100mm

Size 60mm NEMA24 Brushless DC Motor 48V 200W 3000RPM 0.63Nm 60x100mm

$40.00

In Stock:

8

Model: 60AI100-4830

Weight: 1.25KG

Certificated: ISO, CE, RoHS

Ships From China

8 in stock (can be backordered)

60mm BLDC Motor 48V 200W: This size 60mm 3 phase brushless dc motor has a body length 100mm, rated voltage 48v and a moderate rated speed 3000rpm, which can reach 200w power and 0.63Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

60mm BLDC Motor 48V 200W Specification

60mm BLDC Motor 48V 200W

  • Part Number: 60AI100-4830
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 48V
  • Rated Speed: 3000RPM
  • No-loading Speed: 3500RPM
  • Rated Torque: 0.63Nm
  • Rated Curent: 6.0A
  • Rated Power: 200W
  • Insulation Class: B
  • Frame Size: 60x60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 30mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.25kg

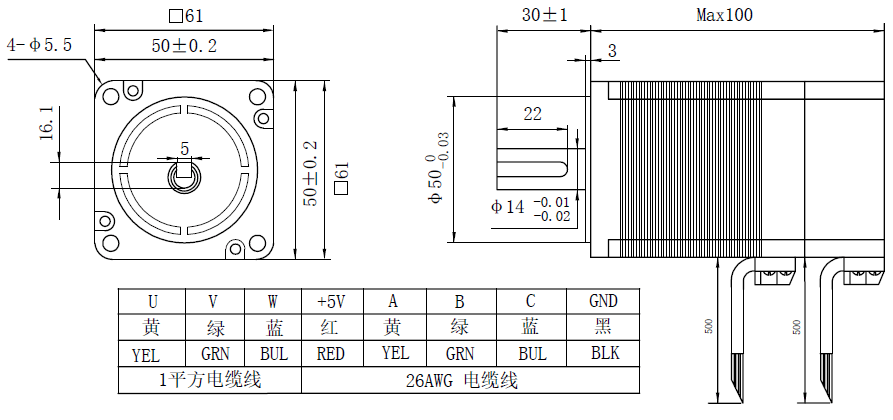

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
