Size 50mm Planetary Geared DC Motor 24V 85RPM 4.5Nm 80W

$65.00

In Stock:

10

Model: 50WS78-24V-S85

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

50mm Geared DC Motor 85RPM:  This compact size 50mm brushed dc motor has a rated voltage 24V and 80w power, integrated with a integrated with a strong planetary gearbox, which can generate a high torque output 4.5Nm and a low speed 68rpm.

50mm Geared DC Motor 85RPM Specification

  • Part Number: 50WS78-24V-S85
  • Rated Voltage: 24V
  • Rated Curent: 3.3A
  • Rated Power: 80W
  • Insulation Class: B
  • No-loaded Speed: 85RPM
  • Rated Speed: 68RPM
  • Rated Torque: 4.5Nm
  • Frame Size: Φ50mm
  • Body Length: 141.3mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30.5mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Weight: 1.5kg

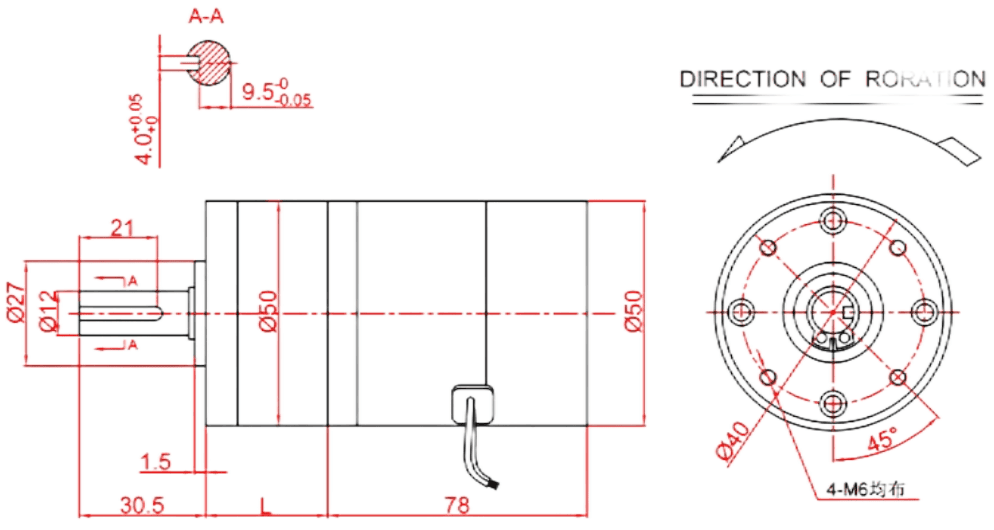

Overall Size

50mm Geared DC Motor 85RPM

L=63.3mm
