42mm-geared-motor-low-speed-12rpm-24v-brushless

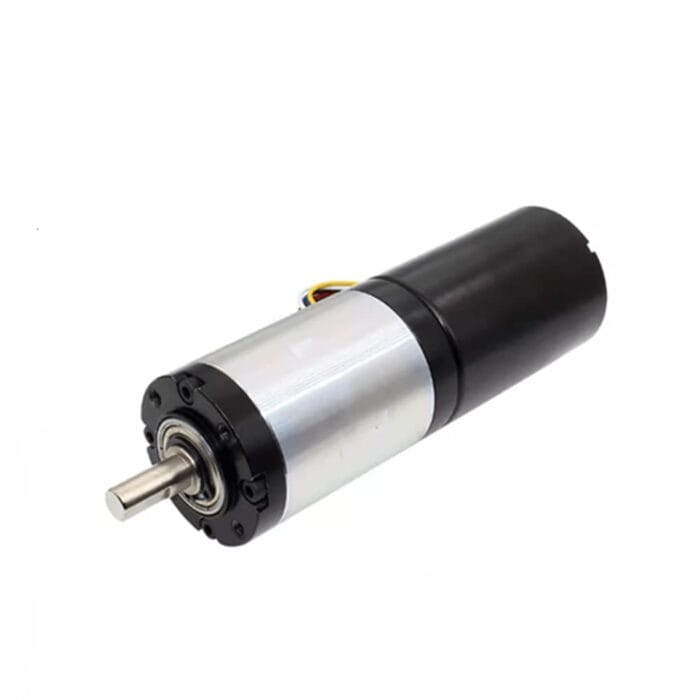

42mm Planetary DC Gearbox Drive Motor Brushless 24V 12RPM

$85.00

In Stock:

150

Model: 42AI60-24V-PG625

Weight: 0.6KG

Certificated: ISO, CE, RoHS

Ships From China

150 in stock

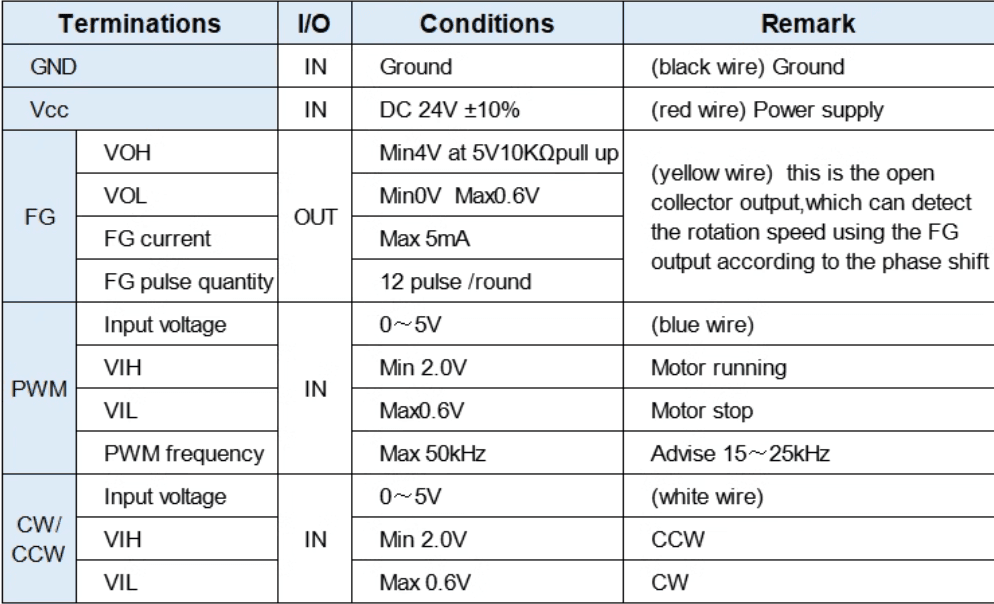

42mm Geared Motor Low Speed: This 42AI60-PG series brushless 24V dc motor is intagrated with a gear ratio of 625:1 planetary gearbox, which leads to a rated speed 12RPM and rated torque 5Nm. It has 5 wires connection with built-in sensor hall drive board so the motor can be operated directly by electricity. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

42mm Geared Motor Low Speed Specification

  • Part Number: 42AI60-24V-PG625
    Rated Voltage: 24VDC
    Rated Power: 50W
    Reduction Ratio: 625:1
    Rated Torque: 5.0Nm
    No-load Speed: 12RPM
    Rated Speed: 11RPM
    Rated Current: 2.8A
    Insulation Class: B
    Sensor Type: Hall
    Body Length: 123.1mm
    Shaft Diameter: Φ8mm
    Shaft Length: 22mm
    D-cut Length: 12mm
    Weight: 0.6KG

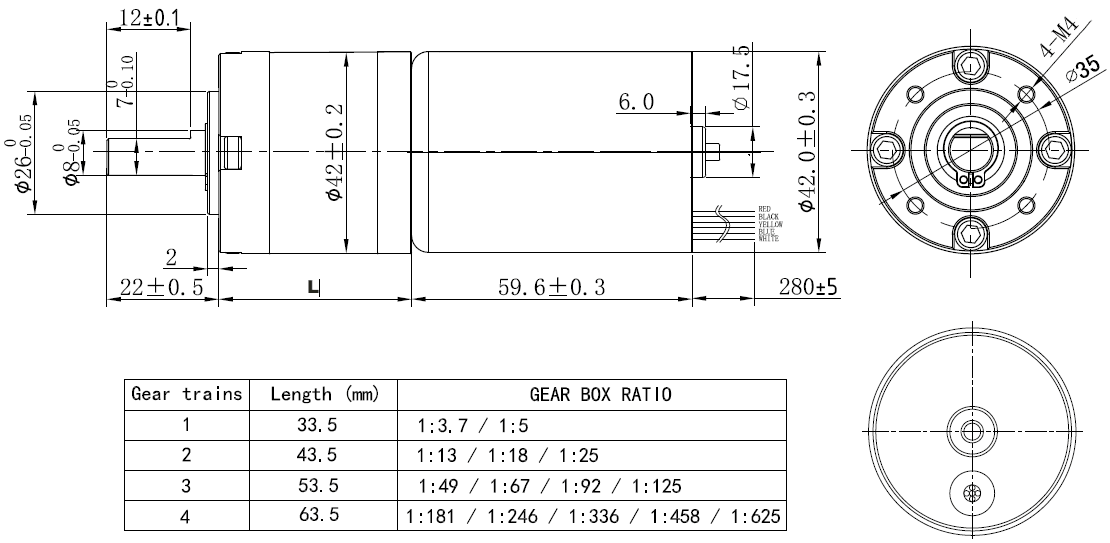

Overall Size

42mm Geared Motor Low Speed



Reviews

There are no reviews yet.

Be the first to review “42mm Planetary DC Gearbox Drive Motor Brushless 24V 12RPM”

Your email address will not be published. Required fields are marked *

Tag: 12v, 16mm, 24v, 42mm, brushless, coreless, geared motor, high torque, low speed, planetary gearbox, small dc motor
