42mm Planetary DC Gearbox Drive Motor Brushless 24V 84RPM 5Nm

$85.00

In Stock:

150

Model: 42AI60-24V-PG92

Weight: 0.6KG

Certificated: ISO, CE, RoHS

Ships From China

150 in stock

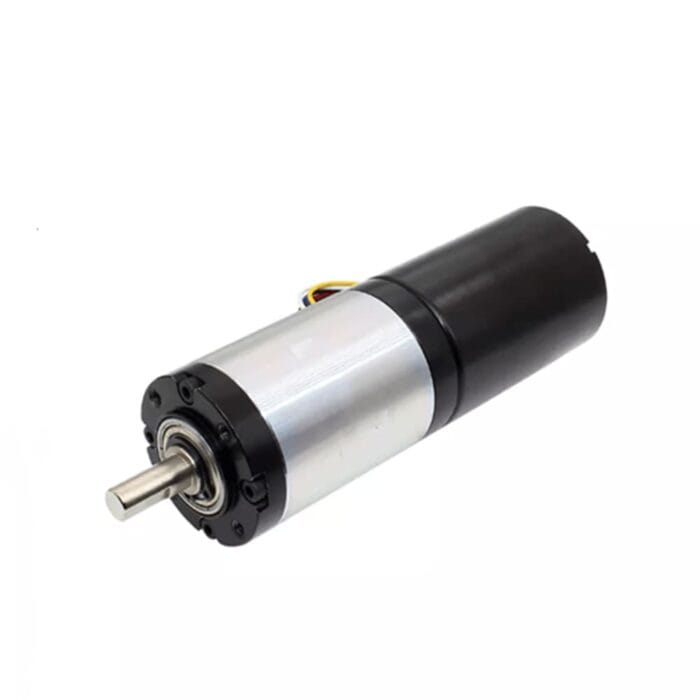

42mm Geared Drive Motor : This 42AI60-PG series brushless 24V dc motor is intagrated with a gear ratio of 92:1 planetary gearbox, which leads to a rated speed 48RPM and high torque 5Nm. It has 5 wires connection with built-in sensor hall drive board so this geared motor can be operated directly by electricity. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

42mm Geared Drive Motor Specification

  • Part Number: 42AI60-24V-PG92
    Rated Voltage: 24VDC
    Rated Power: 50W
    Reduction Ratio: 92:1
    Rated Torque: 5.0Nm
    No-load Speed: 84RPM
    Rated Speed: 48RPM
    Rated Current: 2.8A
    Insulation Class: B
    Sensor Type: Hall
    Body Length: 113.1mm
    Shaft Diameter: Φ8mm
    Shaft Length: 22mm
    D-cut Length: 12mm
    Weight: 0.6KG

Overall Size

42mm Geared Drive Motor
