Size 42mm NEMA17 Brushless DC Motor 24V 52W 4000RPM 0.125Nm 42x61mm

Size 42mm NEMA17 Brushless DC Motor 24V 52W 4000RPM 0.125Nm 42x61mm

$22.00

In Stock:

10

Model: 42AI61-2440

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

42mm DC Motor 4000RPM 52W: This size 42mm 3 phase brushless dc motor has a body length 61mm, rated voltage 24vdc and a moderate rated speed 4000rpm, which can reach 52w power and 0.125Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

42mm DC Motor 4000RPM 52W Specification

42mm DC Motor 4000RPM 52W

  • Part Number: 42AI61-2440
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 4000RPM
  • No-loading Speed: 5000RPM
  • Rated Torque: 0.125Nm
  • Rated Curent: 4.0A
  • Rated Power: 52W
  • Insulation Class: B
  • Frame Size: 42x42mm
  • Body Length: 61mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 21mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.5kg

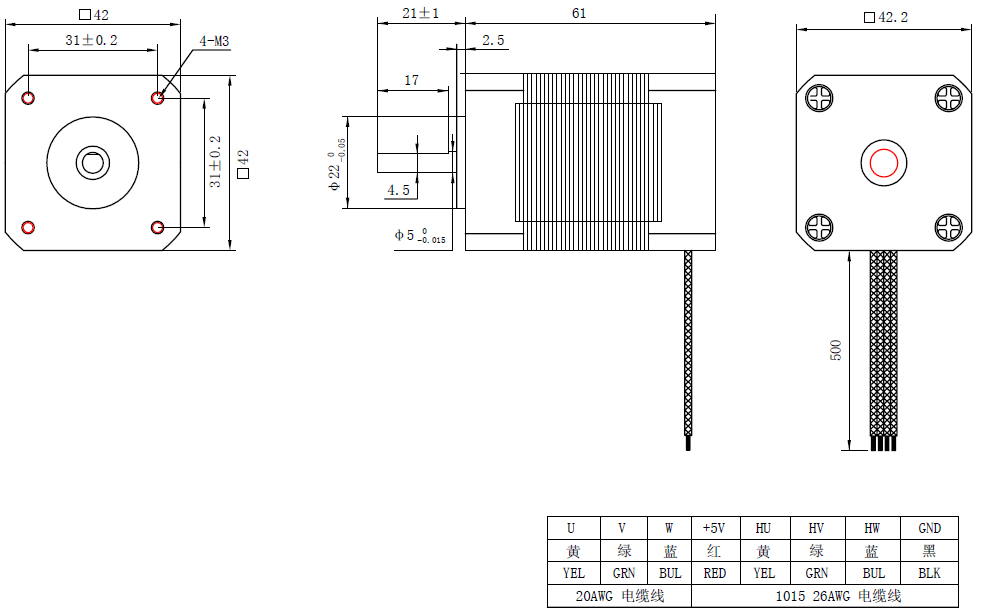

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
