42mm BLDC Motor Dual Shaft

Size 42mm NEMA17 Dual Shaft Brushless DC Motor 24V 64W 3000RPM 0.2Nm with Rear Shaft

$25.00

In Stock:

10

Model: 42AI70-2430D

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

42mm BLDC Motor Dual Shaft: This size 42mm 3 phase brushless dc dual shaft motor has a body length 70mm, rated voltage 24v and a moderate rated speed 3000rpm, which can reach 64w power and 0.2Nm torque output. A length of 16mm rear shaft is available. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

42mm BLDC Motor Dual Shaft Specification

42mm BLDC Motor Dual Shaft

  • Part Number: 42AI70-2430D
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 4000RPM
  • Rated Torque: 0.2Nm
  • Rated Curent: 3.5A
  • Rated Power: 64W
  • Insulation Class: B
  • Frame Size: 42x42mm
  • Body Length: 70mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 16mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 0.55kg

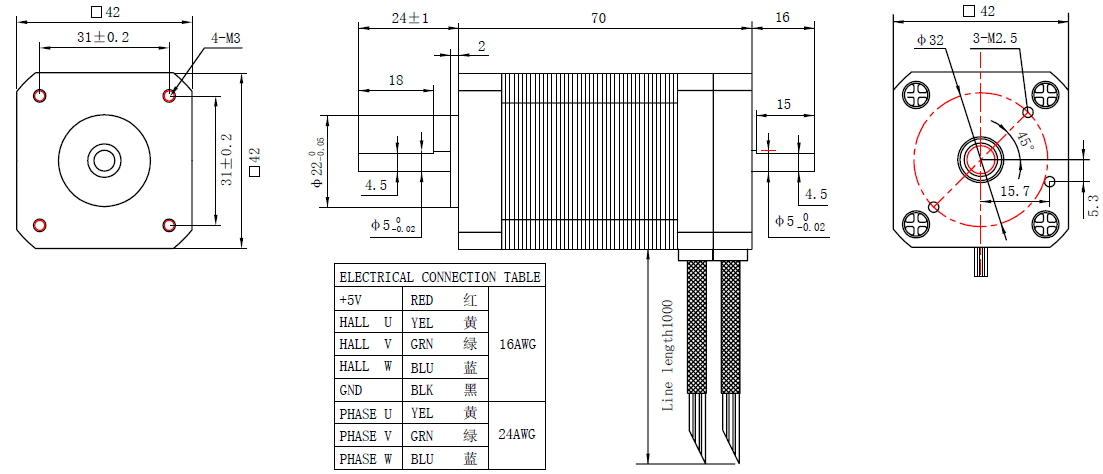

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
