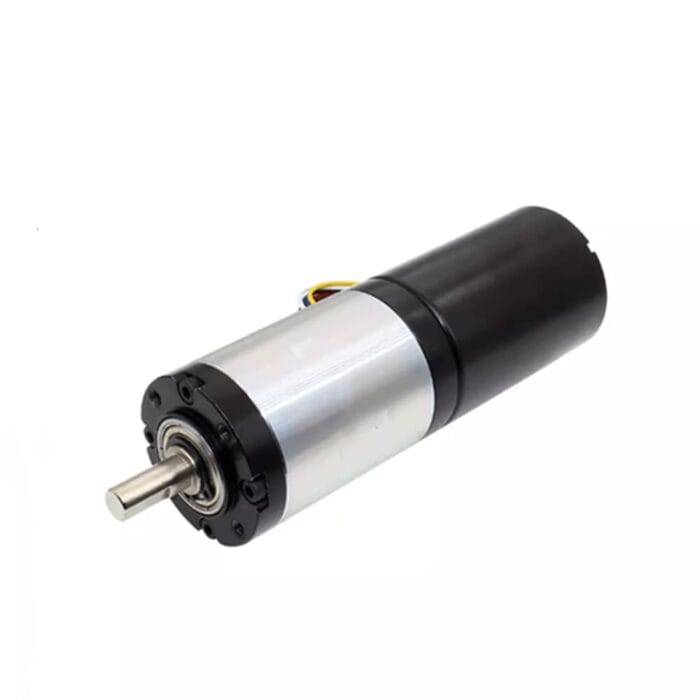

42mm Brushless Planetary Geared Motor : This 42AI60-PG series brushless 24V dc motor is intagrated with a gear ratio of 18:1 planetary gearbox, which leads to a rated speed 240RPM and high torque 1.8Nm. It has 5 wires connection with built-in sensor hall drive board so this geared motor can be operated directly by electricity. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

42mm Brushless Planetary Geared Motor Specification

• Part Number: 42AI60-24V-PG18
  Rated Voltage: 24VDC
  Rated Power: 50W
  Reduction Ratio: 18:1
  Rated Torque: 1.8Nm
  No-load Speed: 420RPM
  Rated Speed: 240RPM
  Rated Current: 2.8A
  Insulation Class: B
  Sensor Type: Hall
  Body Length: 103.1mm
  Shaft Diameter: Φ8mm
  Shaft Length: 22mm
  D-cut Length: 12mm
  Weight: 0.6KG

Overall Size
