Size 32mm Planetary Geared DC Motor 12V 10RPM 2.0Nm 4.6W

$45.00

In Stock:

10

Model: 32WS57-12V-S10

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

32mm Geared DC Motor 10RPM:  This compact size 32mm brushed dc motor has a rated voltage 12V and 4.6w power, integrated with a integrated with a strong planetary gearbox, which can generate a high torque output 2.0Nm and a low speed 7.5rpm.

32mm Geared DC Motor 10RPM Specification

  • Part Number: 31WS57-12V-S10
  • Rated Voltage: 12V
  • Rated Curent: 0.38A
  • Rated Power: 4.6W
  • Insulation Class: B
  • No-loaded Speed: 10RPM
  • Rated Speed: 7.5RPM
  • Rated Torque: 2.0Nm
  • Frame Size: Φ32mm
  • Body Length: 111mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 25mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Weight: 0.4kg

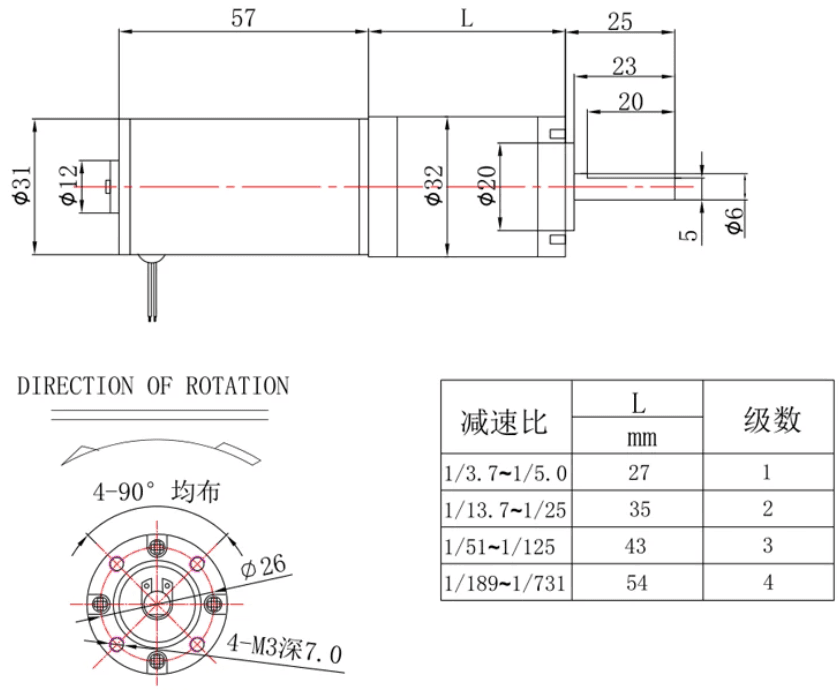

Overall Size

32mm Geared DC Motor 10RPM

L=54mm
