NEMA 23 Helical Planetary Gearbox Low Backlash for Stepper Motor

Price range: $79.00 through $99.00

In Stock:

100

Model: 60AI-XGL

Weight:

Certificated: ISO, CE, RoHS

Ships From China

This high-precision NEMA 23 helical planetary gearbox has a gear ratio from 3:1 to 100:1 and low backalsh down to 3arcmin. It’s an excellent choice for applications that require good accuracy and stable reliability at an exceptional value. What’s more, this inline precise planetary gearbox has a built-in input shaft coupling which can match any standard 57mm stepper motor or other motors. Please note this reducer accepts a motor flange dimensions: Φ8–32/Φ38.1-5/F47.14-M4.

NEMA 23 Helical Planetary Gearbox:

Gear Ratio: 3/4/5/7/10, backlash 3arcmin, gearbox length 72.5mm

Gear Ratio: 12/16/20/25/28/30/35/40/50/70/100, backlash 5arcmin, gearbox length 101.5mm

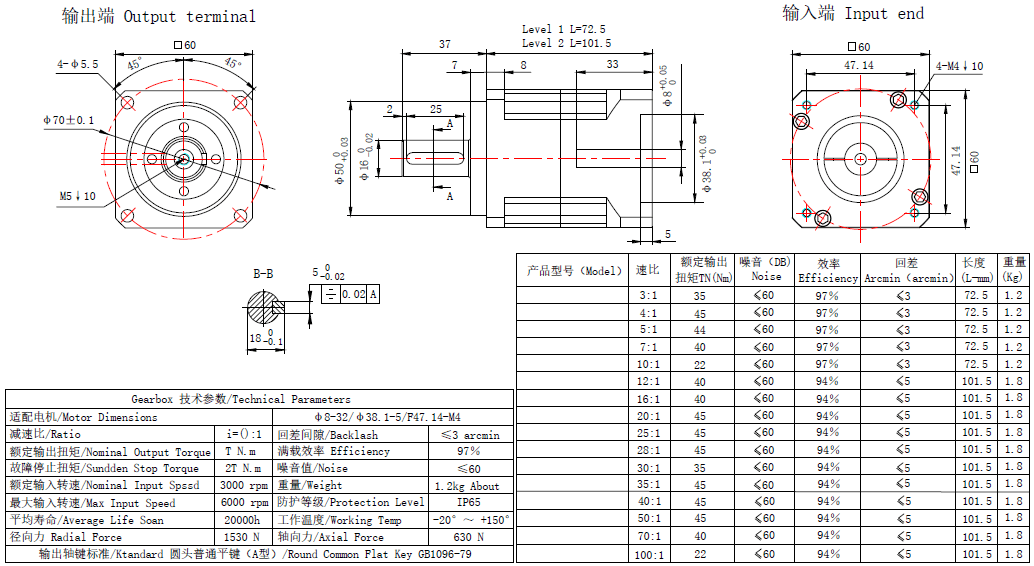

Overall Size

NEMA 23 Helical Planetary Gearbox
