waterproof-hollow-shaft-stepper-motor-ip65-nema23

Size 57mm NEMA 23 Hollow Shaft Stepper Motor 2.0Nm 4.2A 57x76mm Waterproof IP65

$65.00

In Stock:

5

Model: 57AI76-4204K-IP65

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

5 in stock (can be backordered)

Waterproof Hollow Shaft Stepper Motor: This big size 57mm NEMA 23 hollow shaft stepper motor has a body length 76mm with 4.2A rated current & holding torque 2.0Nm. A hollow shaft with outer diameter Φ15mm & inner diameter Φ7mm is available. A IP65 waterproof rating is designed against dust, low pressure jets if water from all directions and limited ingress permitted.

Waterproof Hollow Shaft Stepper Motor Specification

  • Part Number: 57AI76-4204K-IP65
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.0Nm
  • Rated Current/phase: 4.2A
  • Driving Voltage: 24-48VDC
  • Protection Grade: IP65
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ7mm
  • Outer Diameter: Φ15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

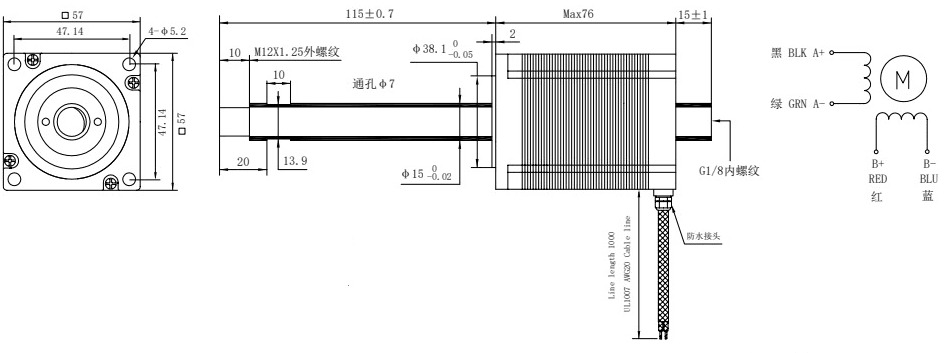

Overall Size

Waterproof Hollow Shaft Stepper Motor
