Stepper Drive 3DM883: This 3 phase 3DM883 stepper drives adopting Leadshine latest advanced stepper control technology. It is highly reliable with good performance and highly competitive cost. And this great stepper drive can power a wide range of 3 phase stepper motors from NEMA 23 to NEMA 34 (model dependent). It is also easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

Stepper Drive 3DM883 Specifications

CE certified and RoHS compliant
Configurable control command smoothing for reducing motor vibration
5V/24V logic input voltage
Pulse response frequency up to 400KHz
Pulse & Direction(PUL/DIR) or CW/CCW(double pulse) control
RS232 debugging interface
Auto-tuning to match wide-range 3 phase NEMA 23, 24, 34 stepper motors
Output Current: 2.2-8.3A(5.9RMS)
Input Voltage: 20-80VDC
Logic Signal Current: 7-16mA(Typical 10mA)
Pulse Input Frequency: 0-400kHz
Cooling: Natural cooling or forced cooling
Ambient Temperature: 0℃-50℃
Humidity: 40%-90%RH
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-65℃

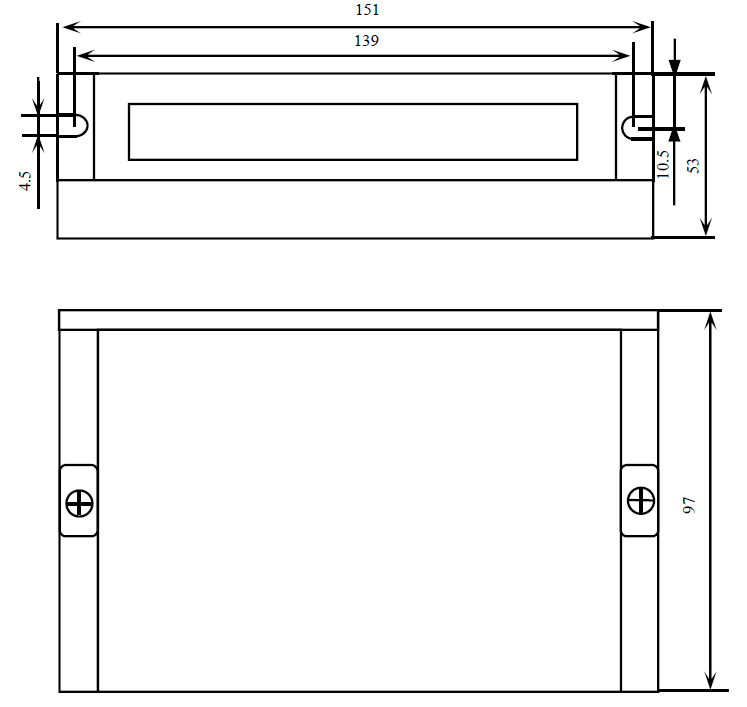

Dimensions: 151×97×53mm
Weight: 500g
