Stepper Drive 3DM580S: This 3 phase 3DM580S stepper drives adopting Leadshine latest advanced stepper control technology. It is highly reliable with good performance and highly competitive cost. And this great stepper drive can power a wide range of 3 phase stepper motors from NEMA 8 to NEMA 34 (model dependent). It is also easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

Stepper Drive 3DM580S Specifications

CE certified and RoHS compliant
Configurable control command smoothing for reducing motor vibration
5V logic input voltage
Pulse response frequency up to 500KHz
Pulse & Direction(PUL/DIR) or CW/CCW(double pulse) control
RS232 debugging interface
Auto-tuning to match wide-range 3 phase NEMA 23, 24, 34 stepper motors
Output Current: 2.0-8.0A(5.7RMS)
Input Voltage: 18-50VDC
Logic Signal Current: 7-16mA(Typical 10mA)
Pulse Input Frequency: 0-500kHz
Cooling: Natural cooling or forced cooling
Ambient Temperature: 0℃-50℃
Humidity: 40%-90%RH
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-65℃

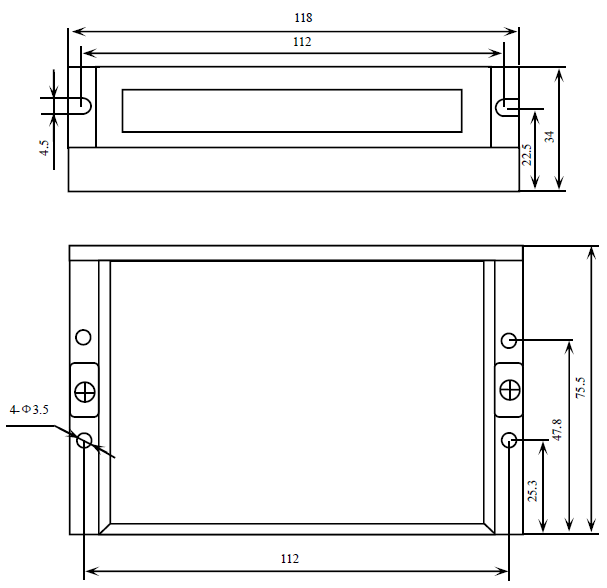

Dimensions: 118×75.5×34mm
Weight: 260g
