Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.07Nm 0.67A 28x32mm 4 Wires

Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.07Nm 0.67A 28x32mm 4 Wires

$7.00

In Stock:

20

Model: 28AI32-0674S

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

20 in stock (can be backordered)

Small NEMA 11 Stepper Motor:  This size 28mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 32mm. Each phase draws rated current 0.67A, allowing for a holding torque of 0.07Nm & optimal working speed upto 1000RPM.

Small NEMA 11 Stepper Motor Specification

  • Part Number: 28AI32-0674S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 0.67A
  • Phase Resistance: 5.6ohms
  • Inductance: 3.4mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 28x28mm
  • Body Length: 32mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 110g

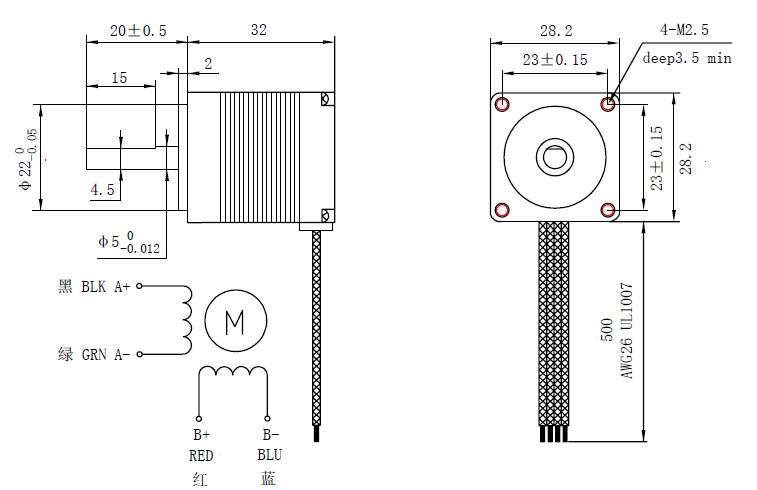

Overall Size

Small NEMA 11 Stepper Motor

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
