Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.022Nm 0.6A 20x34mm 4 Wires

Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.022Nm 0.6A 20x34mm 4 Wires

$10.50

In Stock:

49

Model: 20AI34-0604S

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

49 in stock (can be backordered)

NEMA 8 Stepper Motor 34mm: This small size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 34mm. Each phase draws current 0.6A, allowing for a holding torque of 0.022Nm. Please note this motor has a 15.4mm bolt spacing & 16.0mm pilot circle.

NEMA 8 Stepper Motor 34mm Specification

  • Part Number: 20AI34-0604S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.022Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 5.6ohms
  • Inductance: 2.6mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 34.2mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • D-cut Length: 7mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 60g
  • Stepper Drive: FLKH2D0228DC

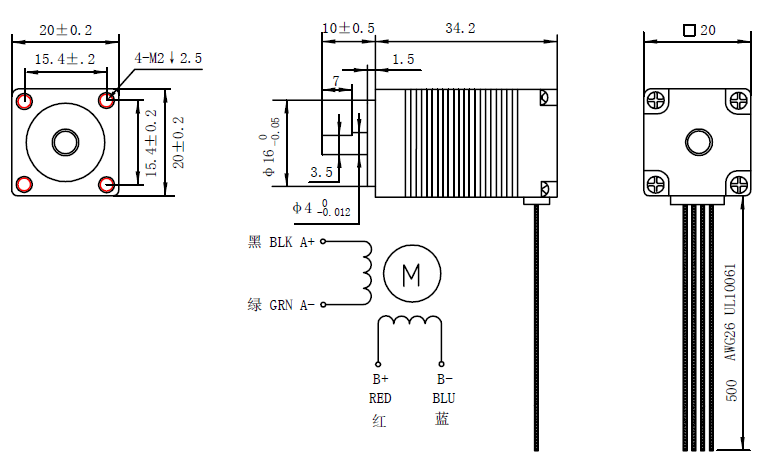

Overall Size

NEMA 8 Stepper Motor 34mm

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
