IG20ET004 Integrated Stepper Servo Motor RS485 NEMA 8 Closed Loop 0.04Nm 8-24VDC Drive & 4096PPR Encoder

$199.00

In Stock:

20

Model: IG21ET004

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

NEMA 8 Integrated Motor RS485: This IG20ET004 integrated stepping servo motor has combined the stepper motor with ditigal drive & an incremental encoder, which is easily used, save the mounting space and solve the loss step issue compared to open loop steper motor. It supports Modbus RS485 and kinds of controls like RS485 command control, pulse/direction control, double pulse control, I/O control, built-in programming, etc.

NEMA 8 Integrated Motor RS485 Specification

  • Manufacturer Part Number: IG21ET004
  • Step Angle: 1.8deg
  • Holding Torque: 0.04Nm
  • Rated Current: 1.0A
  • Drive Voltage: 9-24VDC
  • Drive Current: 0.2-1.5A
  • Signal Voltage: 5-24V
  • Encoder Type: Incremental
  • Encoder Resolution: 4096PPR
  • Modbus Type: RS485
  • Frame Size: 20x20mm
  • Body Length: 52.5mm
  • Shaft Diameter: Φ4mm
  • Weight: 0.09kg

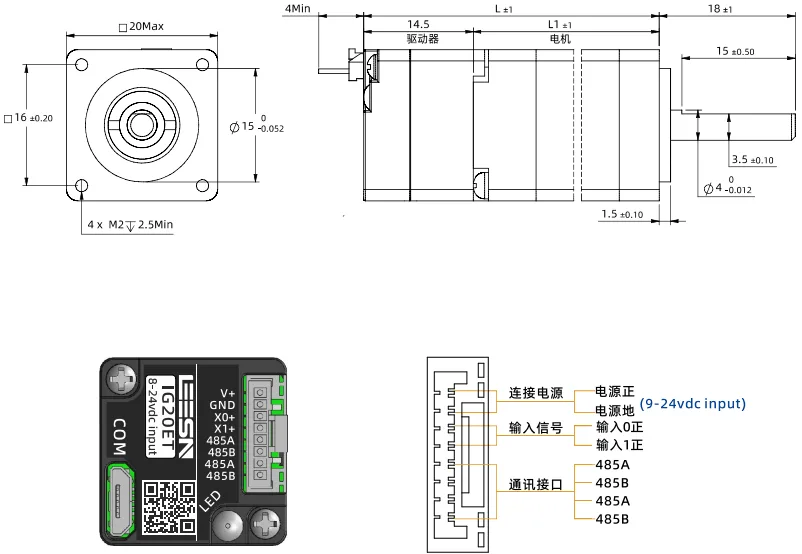

Overall Size

NEMA 8 Integrated Motor RS485
