Size 110mm NEMA 42 Dual Shaft Stepper Motor Bipolar 1.8deg 30Nm 8A 110x201mm with Rear Shaft

Size 110mm NEMA 42 Dual Shaft Stepper Motor Bipolar 1.8deg 30Nm 8A 110x201mm with Rear Shaft

$155.00

In Stock:

4

Model: 110AI201-8004D

Weight: 13.5KG

Certificated: ISO, CE, RoHS

Ships From China

4 in stock (can be backordered)

NEMA 42 Stepper Motor Rear Shaft 30Nm: This size 110mm NEMA 42 dual shaft hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 201mm. Each phase draws a current 8.0A, allowing for a strong holding torque of 30.0Nm. A length of 55mm & diameter 19mm rear shaft is available.

NEMA 42 Stepper Motor Rear Shaft 30Nm Specification

NEMA 42 Stepper Motor Rear Shaft 30Nm

  • Part Number: 110AI201-8004D
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 30.0Nm
  • Rated Current/phase: 8.0A
  • Phase Resistance: 0.7ohms
  • Inductance: 13.5mH
  • Driving Voltage: 110-220VAC
  • Frame Size: 110x110mm
  • Body Length: 150mm
  • Front Shaft Diameter: Φ19mm
  • Front Shaft Length: 55mm
  • Keyway Length: 35mm
  • Rear Shaft Diameter: Φ19mm
  • Rear Shaft Length: 55mm
  • Keyway Length: 35mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 11.75kg
  • Stepper Drive: DM2282

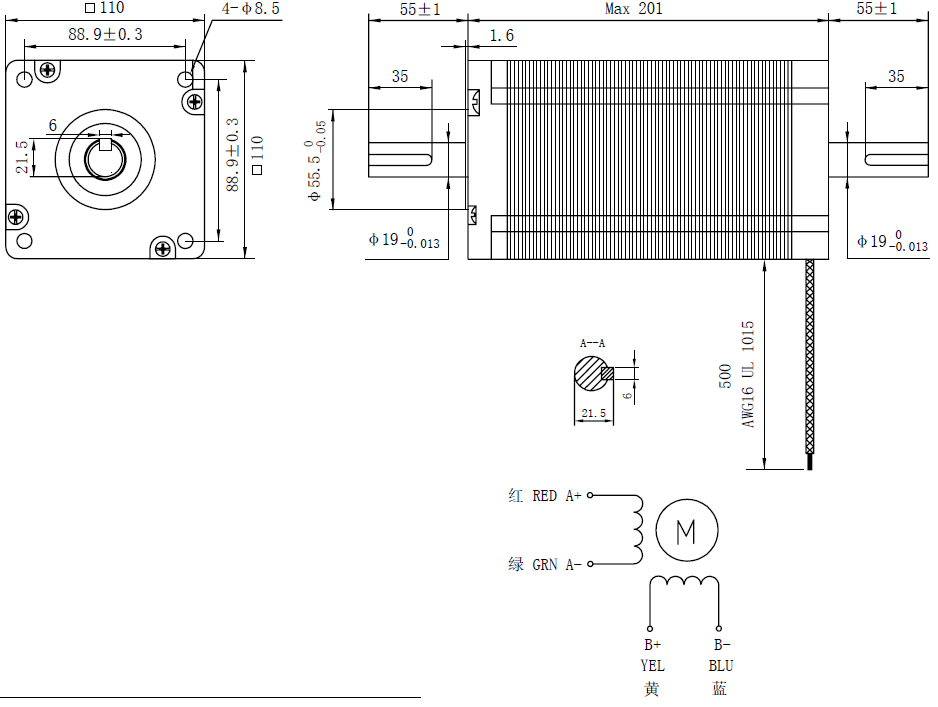

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
