90mm Precision Square Planetary Gearbox for NEMA 34 Motor

90mm Precision Square Planetary Gearbox for NEMA 34 Motor

Price range: $95.00 through $120.00

In Stock:

100

Model: 90AI-KGB

Weight: 3.7KG

Certificated: ISO, CE, RoHS

Ships From China

This size 90mm NEMA 34 precision planetary gearbox with round flange has a gear ratio 3 to 100 and low backalsh from 15arc-min to 20arc-min. It’s an excellent choice for applications that require good accuracy and stable reliability at an exceptional value. Wha’s more, this inline short planetary gearbox has a built-in input shaft coupling which can match any standard NEMA 34 stepper motor and brushless dc motor or other motors. Please note this extended gearbox are recommended for the motor has shaft length 32-40mm.

NEMA 34 Precision Planetary Gearbox:

Gear Ratio: 3/4/5/7/10, backlash 15arcmin, gearbox length 110mm
Gear Ratio: 16/20/25/28/35/40/50/70/100, backlash 20arcmin, gearbox length 132mm

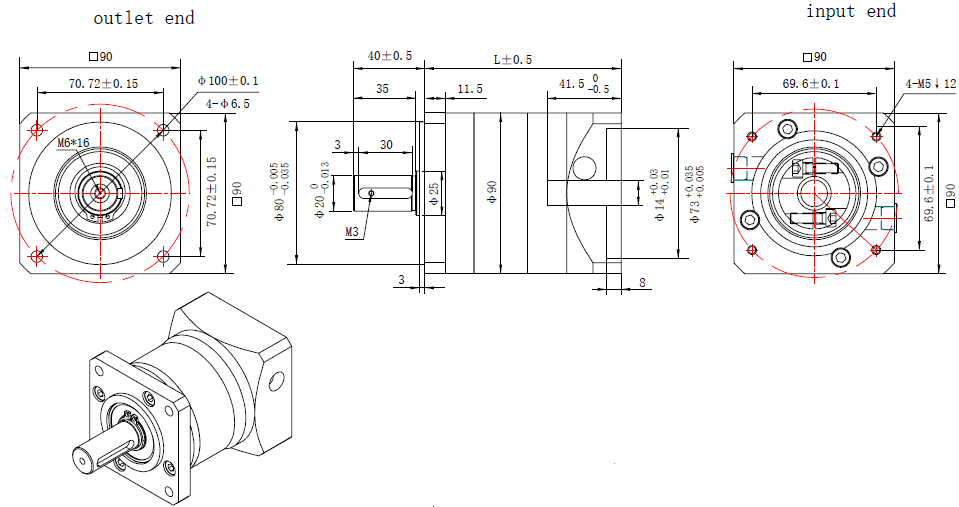

NEMA 34 Precision Planetary Gearbox
