NEMA 23 Stepper Motor 8 Leads

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 2.8Nm 4A 57x84mm Φ6.35mm Shaft 8 Leads

$18.50

In Stock:

10

Model: 57AI84-4008S

Weight: 1.6KG

Certificated: ISO, CE, RoHS

(1 customer review)

Ships From China

10 in stock (can be backordered)

NEMA 23 Stepper Motor 8 Leads: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 84mm, which has 8 leads connection: (three connection options): Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It’s houlding torque reach 2Nm with unipolar connection and 2.8Nm with bipolar connection. It is wides used for 3D Printing, CNC machines, intelligent robots, etc.

NEMA 23 Stepper Motor 8 Leads Specification

  • Part Number:
  • Motor Type: Unipolar/Bipolar
  • Step Angle: 1.8deg
  • Holding Torque(Bipolar): 2.8Nm(401oz.in)
  • Holding Torque(Unipolar): 2Nm(283oz.in)
  • Rated Current(Bipolar Serial): 2.83A
  • Rated Current(Bipolar Parallel): 5.66A
  • Rated Current(Unipolar): 4.0A
  • Phase Resistance(Bipolar Serial): 1.6ohms
  • Phase Resistance(Bipolar Parallel): 0.4ohms
  • Phase Resistance(Unipolar): 0.8ohms
  • Inductance(Bipolar Serial): 7.2mH
  • Inductance(Bipolar Parallel): 1.8mH
  • Inductance(Unipolar): 1.8mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 84mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Weight: 1.45kg

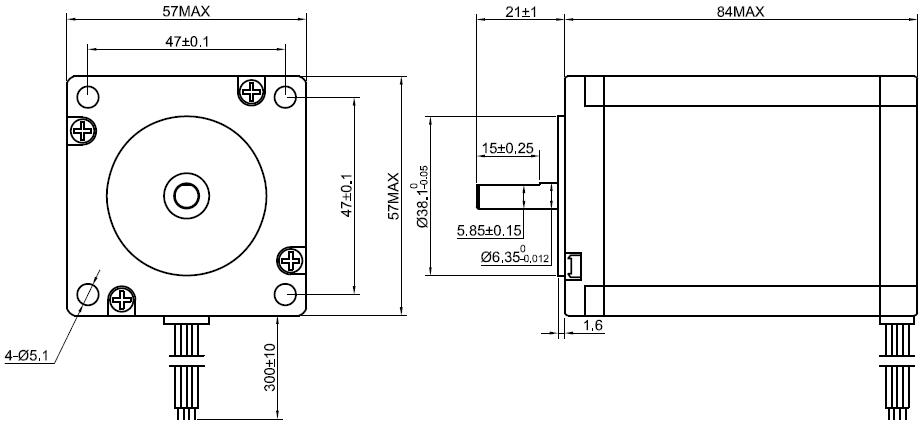

Overall Size

57AI84-4008S Datasheet

57AI84-4008S Datasheet

1 review for Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 2.8Nm 4A 57x84mm Φ6.35mm Shaft 8 Leads

  1. FRANK DAVID –

    VERY STORNG STEPPER MOTOR, DRIVE MY MACHINE VERY WELL, ONLY A QUESTION IS THAT 8MM SHAFT DIAMETER IS BETTER.

Add a review

Your email address will not be published. Required fields are marked *

Tag: 2.4nm, 2.8nm, 4a, 57-82mm, 8 leads, 84mm, nema 23 high torque, nema 23 motor
