nema-23-stepper-motor-76mm-3a-2nm

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 2Nm 3.0A 57x76mm 4 Wires Φ6.35mm Shaft

$12.50

In Stock:

50

Model: 57AI76-3004S

Weight: 1.3KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 23 Stepper Motor 76mm 3A: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 76mm. Each phase draws a rated current 3.0A, allowing for a strong holding torque of 2.0Nm. This high performance stepper motor has a diameter 6.35mm output shaft and is widely used for 3D printers, robots and CNC maching.

NEMA 23 Stepper Motor 76mm 3A Specification

  • Part Number: 57AI76-30004S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.0Nm
  • Rated Current/phase: 3.0A
  • Phase Resistance: 1.13ohms
  • Inductance: 4.8mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.1kg
  • Stepper Drive: DM542

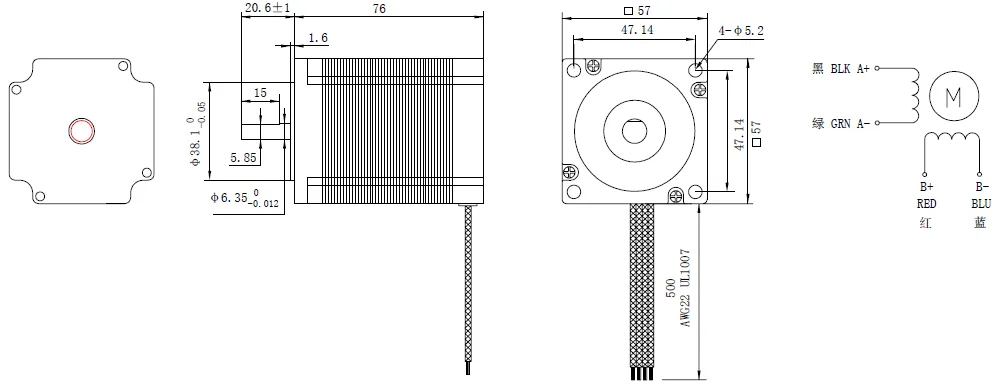

Overall Size

NEMA 23 Stepper Motor 76mm 3A

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
