NEMA 23 Stepper Motor 41mm 2.8A 0.64Nm

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 0.64Nm 2.8A 57x41mm 4 Wires

$8.50

In Stock:

10

Model: 57AI41-2804S

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Stepper Motor 41mm : This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a short body length 41mm with 4 leads. Each phase draws a current 2.8A, allowing for a strong holding torque of 0.64Nm.

NEMA 23 Stepper Motor 41mm SpecificationNEMA 23 Stepper Motor 41mm

  • Part Number: 57AI41-2804S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.64Nm
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.85ohms
  • Inductance: 1.9mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 41mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g
  • Stepper Drive: DM542

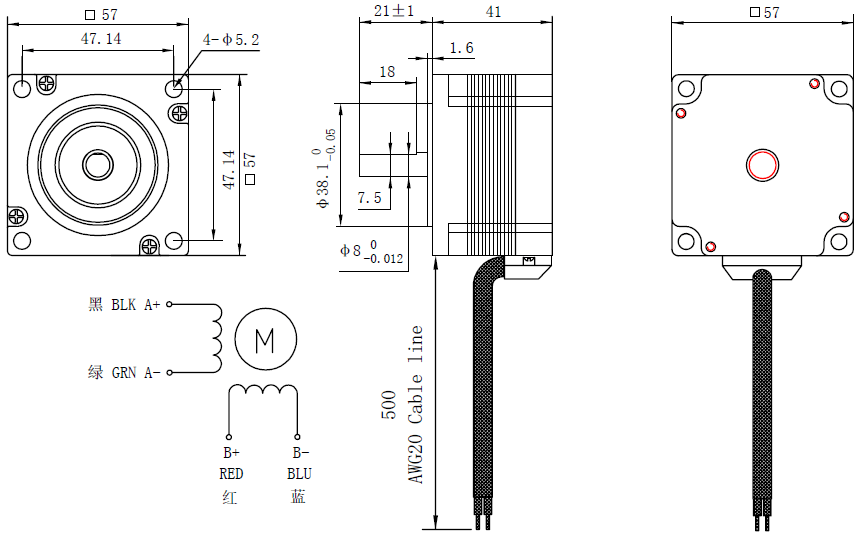

Overall Size

57AI41-2804S Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
