60mm Precise Round Planetary Gearbox

60mm Precision Round Planetary Gearbox for NEMA 23 Motor

Price range: $60.00 through $70.00

In Stock:

100

Model: 57AI-KGR

Weight: 1.1KG

Certificated: ISO, CE, RoHS

Ships From China

This size 60mm NEMA 23 precision planetary reducer with round flange has a gear ratio 3 to 100 and low backalsh from 15arc-min to 20arc-min. It’s an excellent choice for applications that require good accuracy and stable reliability at an exceptional value. Wha’s more, this inline short planetary gearbox has a built-in input shaft coupling which can match any standard NEMA 23 stepper motor and brushless dc motor or other motors. Please note this extended gearbox are recommended for the motor has shaft length 15-24mm.

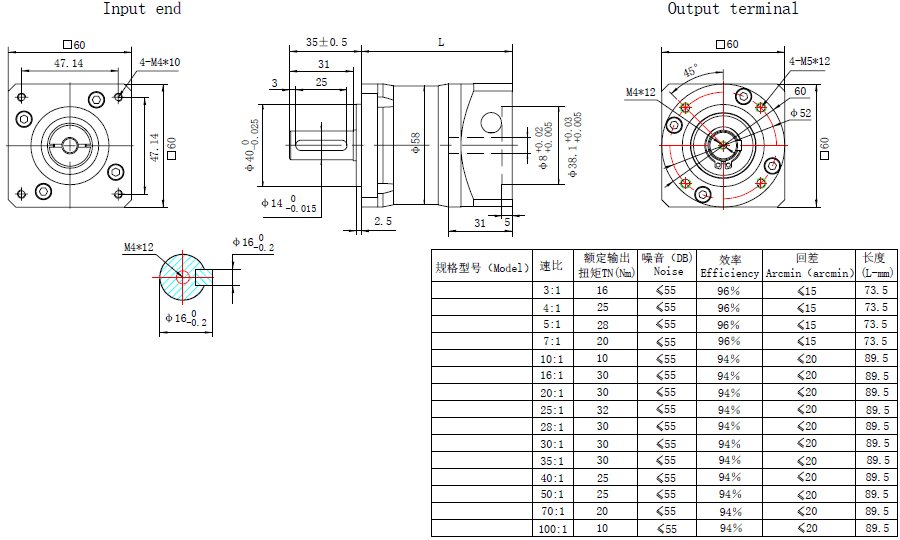

NEMA 23 Precision Planetary Reducer:

Gear Ratio: 3/4/5/7/10, backlash 15arcmin, gearbox length 73.5mm
Gear Ratio: 16/20/25/28/35/40/50/70/100, backlash 20arcmin, gearbox length 89.5mm

NEMA 23 Precision Planetary Reducer
