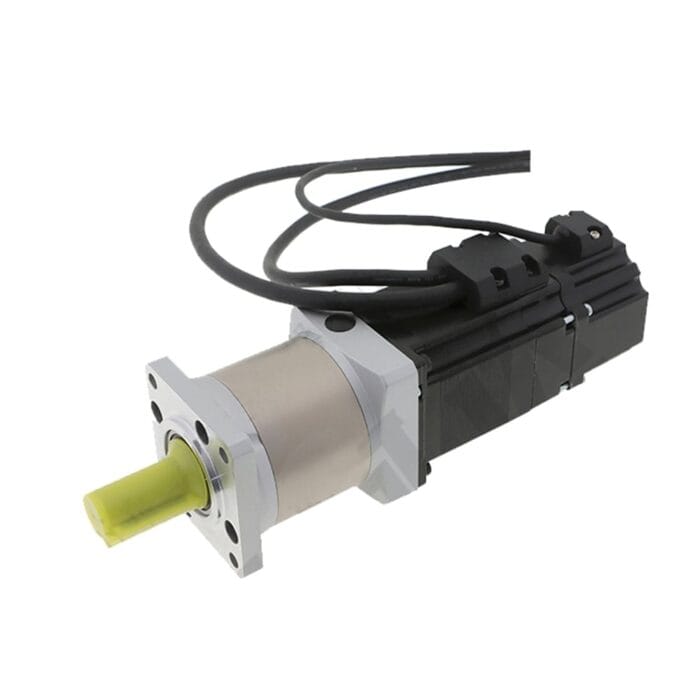

NEMA 23 Closed-loop Stepper Motor with Reduction Ratio 10:1 High Precision Gearbox & Electromagnetic Brake

$199.00

In Stock:

10

Model: 57HB80-4604E-KGL10-YS

Weight: 2.9

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock

This size 57mm NEMA 23 geared closed loop motor with brake has integrated with a gear ratio 10:1 high precision planetary gearbox & a 24V electromagnetic brake. It generates a strong torque upto 20Nm and low speeds 0-100RPM, which are widely used for complex situations like robots control, semiconductor, medical devices, etc.

NEMA 23 Geared Closed Loop Motor with Brake

  • Part Number: 57HB80-4604E-KGL10-YS
  • Step Angle: 1.8deg without gearbox
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.2Nm without gearbox
  • Rated Current/phase: 4.6A
  • Driving Voltage: 24-48V
  • Frame Size: 57x57mm
  • Body Length: 213.5mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 35mm
  • Keyway Length: 25mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC

Overall Size

NEMA 23 Geared Closed Loop Motor with Brake
