Size 57mm NEMA 23 Dual Shaft Stepper Motor Bipolar 1.8deg 2.0Nm 4.2A 57x76mm with Rear Shaft

Size 57mm NEMA 23 Dual Shaft Stepper Motor Bipolar 1.8deg 2.0Nm 4.2A 57x76mm with Rear Shaft

$13.00

In Stock:

10

Model: 57AI76-4204D

Weight: 1.3KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 23 Dual Shaft Stepper Motor: This size 57mm NEMA 23 dual shaft hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 76mm. Each phase draws a rated current 4.2A, allowing for a strong holding torque of 2.0Nm & optimal working speed upto 1500RPM. A length of 15mm rear shaft is available.

NEMA 23 Dual Shaft Stepper Motor Specification

  • Part Number: 57AI76-4204D
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.0Nm
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.6ohms
  • Inductance: 1.8mH
  • Driving Voltage: 24-48VDC
  • Insulation Class: B 130°C
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Front Shaft Diameter: Φ8mm
  • Front Shaft Length: 21mm
  • Front D-cut Length: 18mm
  • Rear Shaft Diameter: Φ8mm
  • Rear Shaft Length: 15mm
  • Rear D-cut Length: 14mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.1kg

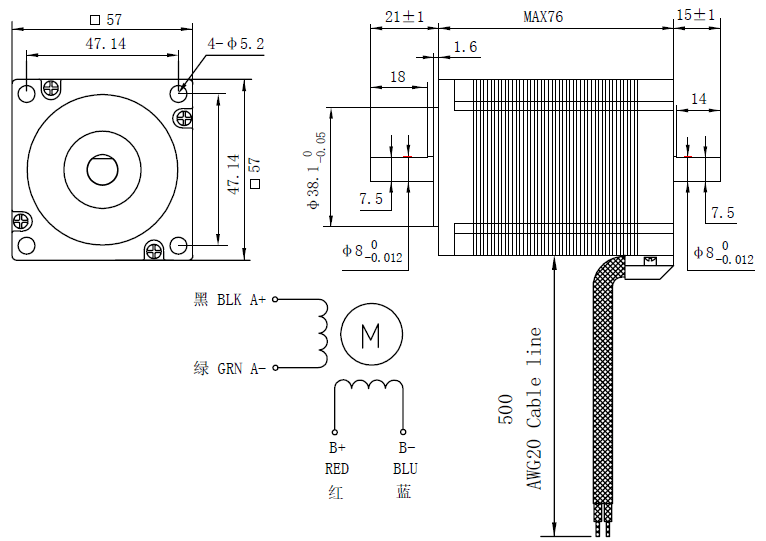

Overall Size

NEMA 23 Dual Shaft Stepper Motor
