Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 1.2Nm 2.8A 57x56mm 4 Wires Φ6.35mm Shaft

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 1.2Nm 2.8A 57x56mm 4 Wires Φ6.35mm Shaft

$9.50

In Stock:

50

Model: 57AI56-2804S

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

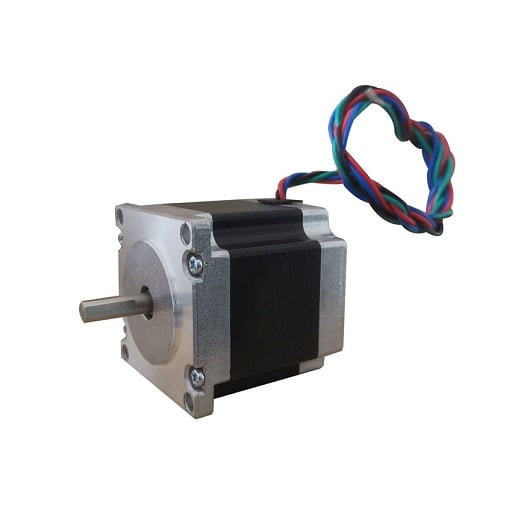

NEMA 23 56mm 2-8A 1-26Nm: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 56mm. Each phase draws a current 2.8A, allowing for a strong holding torque of 1.2Nm. This high performance stepper motor has a standard output shaft diameter 6.35mm.

NEMA 23 56mm 2-8A 1-26Nm Specification

NEMA 23 56mm 2-8A 1-26Nm

  • Part Number: 57AI56-2804S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.8Nm
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH
  • Driving Voltage: 24-48VDC
  • Frame Size: Φ57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 700g
  • Stepper Drive: DM542

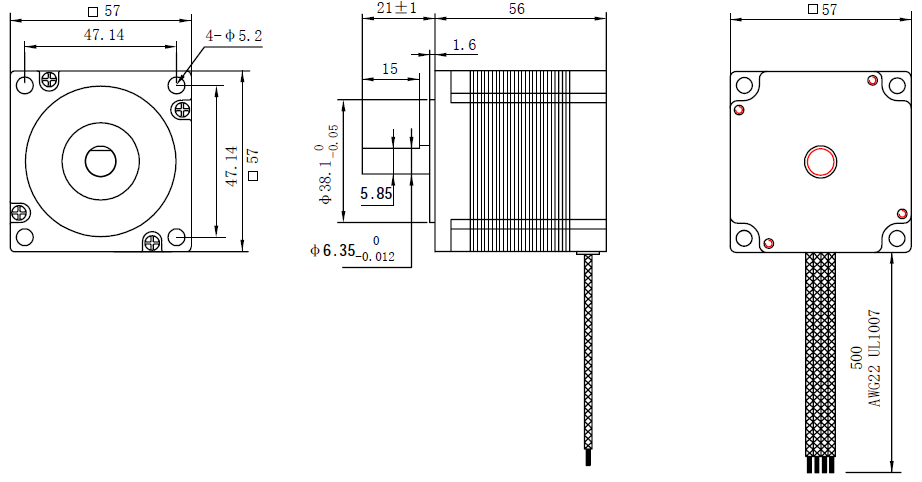

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
