NEMA 17 Stepper Motor Unipolar 42-48mm 1.2A 6 Leads

Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.36Nm 1.2A 42x48mm 6 Wires

$7.50

In Stock:

10

Model: 42AI48-1206D20

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 17 Unipolar Stepper Motor 48mm: This size 42mm NEMA 17 hybrid unipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a moderate body length 48mm with 6 leads connection. Each phase draws a low rated current 1.2A, allowing for optimal working speed upto 1500RPM & a strong holding torque of 0.36Nm.

NEMA 17 Unipolar Stepper Motor 48mm Specification

  • Part Number: 42AI48-1206D20
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Unipolar
  • Holding Torque: 0.36Nm
  • Rated Current/phase: 1.2A
  • Phase Resistance: 3.3ohms
  • Inductance: 2.8mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g

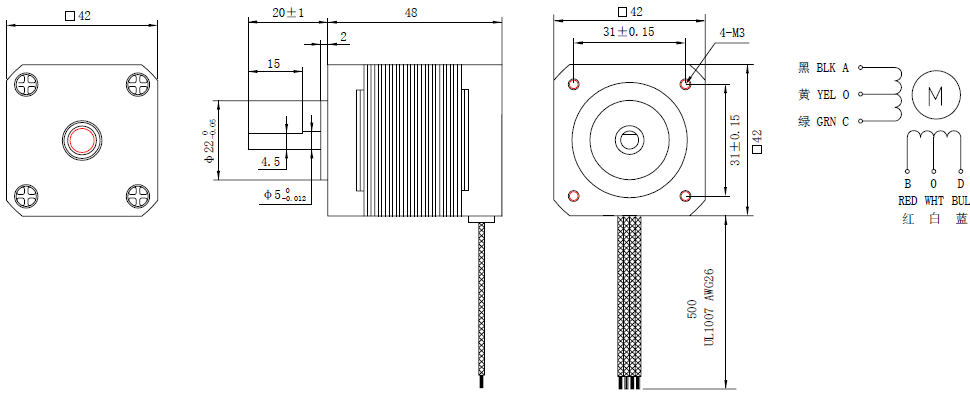

Overall Size

NEMA 17 Unipolar Stepper Motor 48mm
