Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.26Nm 1.2A 42x40mm 6 Wires

Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.26Nm 1.2A 42x40mm 6 Wires

$7.10

In Stock:

10

Model: 42AI40-1206S

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Unipolar Stepper Motor: This size 42mm NEMA 17 hybrid unipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a moderate body length 40mm. Each phase draws current 1.2A, allowing for a strong holding torque of 0.26Nm.

NEMA 17 Unipolar Stepper Motor Specification

NEMA 17 Unipolar Stepper Motor

  • Part Number: 42AI40-1206S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Unipolar
  • Holding Torque: 0.26Nm
  • Rated Current/phase: 1.2A
  • Phase Resistance: 3.3ohms
  • Inductance: 3.2mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 300g
  • Stepper Drive: FLKH2D1228DC

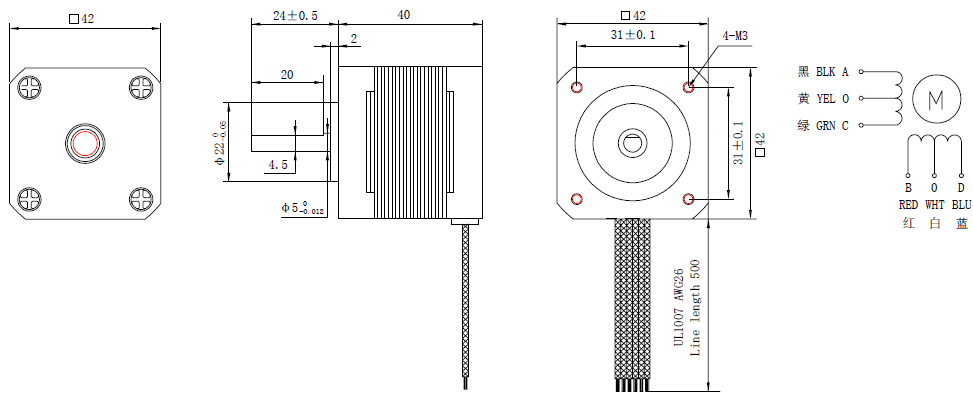

Overall Size

Motor 6 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue), O+(Yellow), O-(White)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
