Size 42mm NEMA 17 Ultrathin High Precision Short Planetary Gearbox Stepper Motor Gear Ratio 10:1

$85.00

In Stock:

10

Model: 42HB20-1004S-FGC10

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock (can be backordered)

NEMA 17 Ultrathin Geared Motor: This ULTRATHIN geared stepper motor has a frame size 42x20mm with rated current 1.0A, integrated with a very short customzied high-precision planetary gearbox of gear ratio 10:1. It is specially designed for the robot but also can work for the applications that require high torque or low speed but high precision motion control.

NEMA 17 Ultrathin Geared Motor Specification

  • Part Number: 42HB20-1004S-FGC10
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.14Nm w/o gearbox
  • Rated Current/phase: 1.0A
  • Frame Size: 42x42mm
  • Motor Length: 20mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 10:1
  • Efficiency: 96%
  • Backlash at No-load: 15arcmin
  • Gearbox Length: 21.5mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 25mm
  • Keyway Length: 16mm

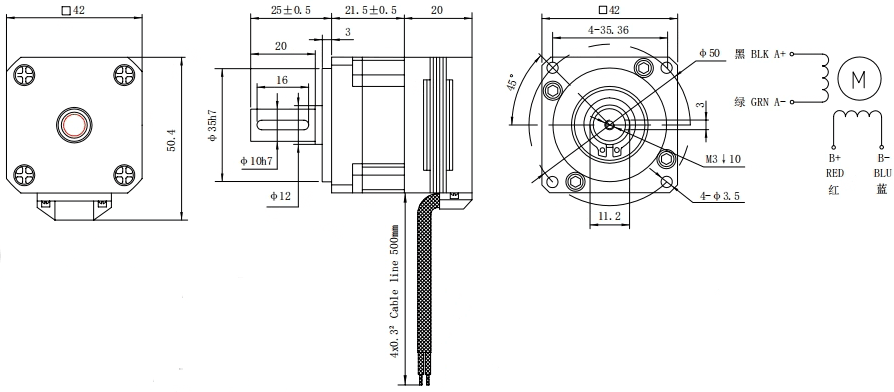

Overall Size

NEMA 17 Ultrathin Geared Motor

If needing bigger gear ratio, please feel free to contact us.
