NEMA 17 Stepper Motor Short Axis Bipolar 1.8deg 0.59Nm 2.0A 42x48mm

$7.50

In Stock:

50

Model: 42AI48-2004Y10

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

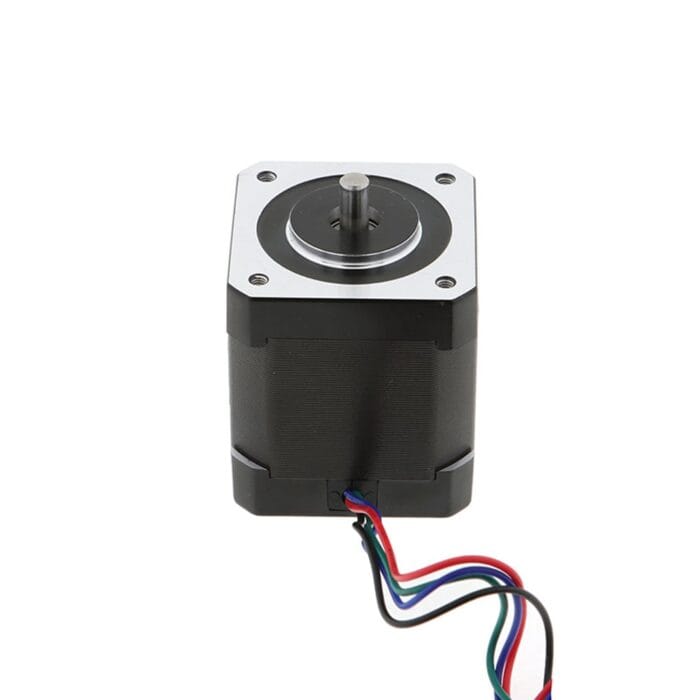

NEMA 17 Stepper Motor Short Axis: This size 42mm NEMA 17 hybrid bipolar stepping motor with short axis has a 1.8° step angle(200 steps/revolution) and a moderate body length 48mm. Each phase draws a low current 2A, allowing for a strong holding torque of 0.59Nm. A 1000mm cable with DuPont 4 pin 2.54mm pitch conenctor is available.

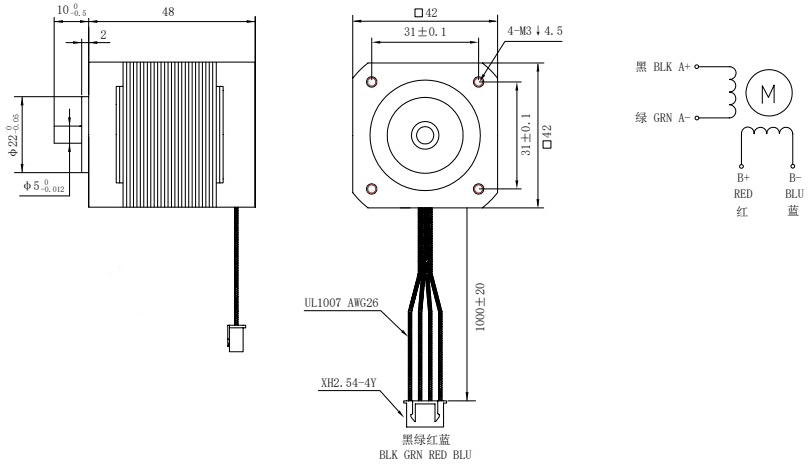

NEMA 17 Stepper Motor Short Axis Specification

  • Part Number: 42AI48-2004Y10
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.59Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.4ohms
  • Inductance: 3.0mH
  • Driving Voltage: 12-24V
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g

NEMA 17 Stepper Motor Short Axis
