Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.65Nm 1.2A 42x60mm 6 Wires

Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.65Nm 1.2A 42x60mm 6 Wires

$9.20

In Stock:

10

Model: 42AI60-1206S

Weight: 0.6KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Stepper Motor 6 Leads: This size 42mm NEMA 17 hybrid unipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 60mm. Each phase draws a low current 1.2A, allowing for a strong holding torque of 0.65Nm.

NEMA 17 Stepper Motor 6 Leads Specification

NEMA 17 Stepper Motor 6 Leads

  • Part Number: 42AI60-1206S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Unipolar
  • Holding Torque: 0.65Nm
  • Rated Current/phase: 1.2A
  • Phase Resistance: 6.0ohms
  • Inductance: 7.0mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 60mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g
  • Stepper Drive: FLKH2D1228DC

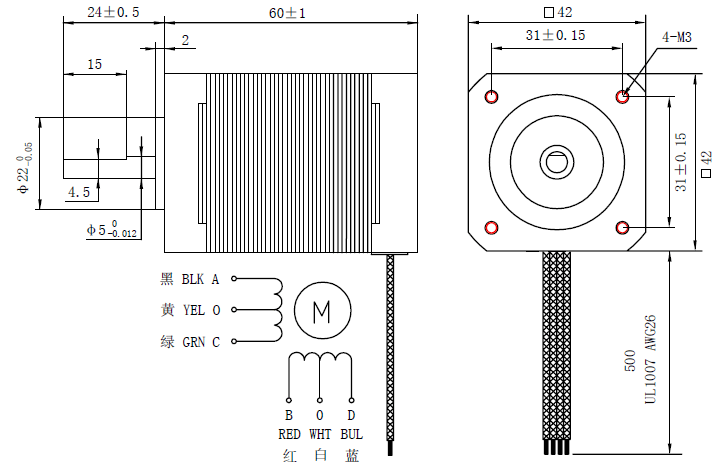

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Stepper Motor Unipolar 1.8deg 0.65Nm 1.2A 42x60mm 6 Wires”

Your email address will not be published. Required fields are marked *

Tag: 0.65nm, 1.2a, 42-60mm, 6 wires, nema 17 unipolar, unipolar motor
