Size 42mm NEMA 17 Dual Shaft Stepper Motor Bipolar 1.8deg 0.32Nm 1.33A 42x34mm with Rear Shaft

Size 42mm NEMA 17 Dual Shaft Stepper Motor Bipolar 1.8deg 0.32Nm 1.33A 42x34mm with Rear Shaft

$6.90

In Stock:

20

Model: 42AI34-1334B

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

20 in stock (can be backordered)

NEMA 17 34mm Dual Shaft: This dual shaft size 42mm NEMA 17 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a short body length 34mm. Each phase draws rated current 1.33A, allowing for a strong holding torque of 0.32Nm & optimal working speed upto 1500RPM. A length of 15mm rear shaft is available.

NEMA 17 34mm Dual Shaft Specification

  • Part Number: 42AI34-1334B
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.32Nm
  • Rated Current/phase: 1.33A
  • Phase Resistance: 2.7ohms
  • Inductance: 4.2mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • D-cut Length: 20mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 15mm
  • D-cut Length: 14mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 250g

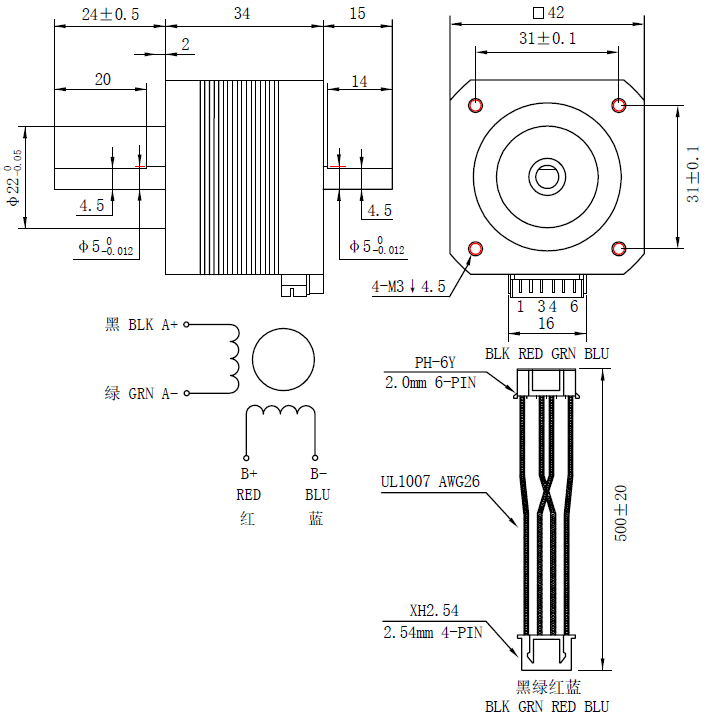

Overall Size

NEMA 17 34mm Dual Shaft

Black: A+, Green A-; Red: B+, Blue: B-
