Size 35mm NEMA 14 Dual Shaft Stepper Motor Bipolar 1.8deg 0.5Nm 1.2A 35x60mm with Rear Shaft

Size 35mm NEMA 14 Dual Shaft Stepper Motor Bipolar 1.8deg 0.5Nm 1.2A 35x60mm with Rear Shaft

$10.50

In Stock:

50

Model: 35AI60-1204D

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 14 Rear Shaft: This powerful dual shaft size 35mm NEMA 14 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 60mm. Each phase draws current 1.2A, allowing for a good holding torque of 0.5Nm. A length of 15mm rear shaft is available. It is widely used in laser cutting machines, 3d printing, CNC Lathes, etc.

NEMA 14 Rear Shaft Specification

  • Part Number: 35AI60-1204D
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.5Nm
  • Rated Current/phase: 1.2A
  • Phase Resistance: 2.7ohms
  • Inductance: 2.4mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 60mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • D-cut Length: 20mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 15mm
  • D-cut Length: 14mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g

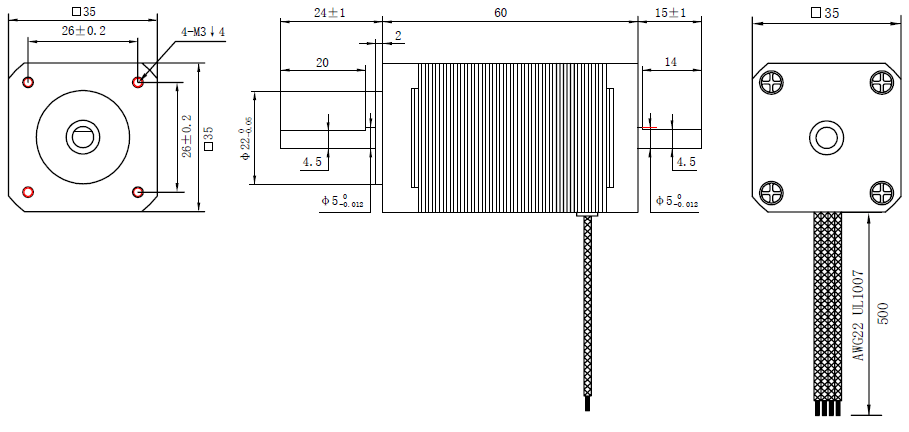

Overall Size

NEMA 14 Rear Shaft

Black: A+, Green A-; Red: B+, Blue: B-
