Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.09Nm 0.67A 28x45mm 4 Wires

Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.09Nm 0.67A 28x45mm 4 Wires

$8.00

In Stock:

20

Model: 28AI45-0674S

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

NEMA 11 Stepper Motor 45mm: This size 28mm NEMA 11 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 45mm. Each phase draws current 0.67A, allowing for a holding torque of 0.095Nm.

NEMA 11 Stepper Motor 45mm Specification

NEMA 11 Stepper Motor 45mm

  • Part Number: 28AI45-0674S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.09Nm
  • Rated Current/phase: 0.67A
  • Phase Resistance: 6.8ohms
  • Inductance: 4.9mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 45mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 160g
  • Stepper Drive: FLKH2D1228DC

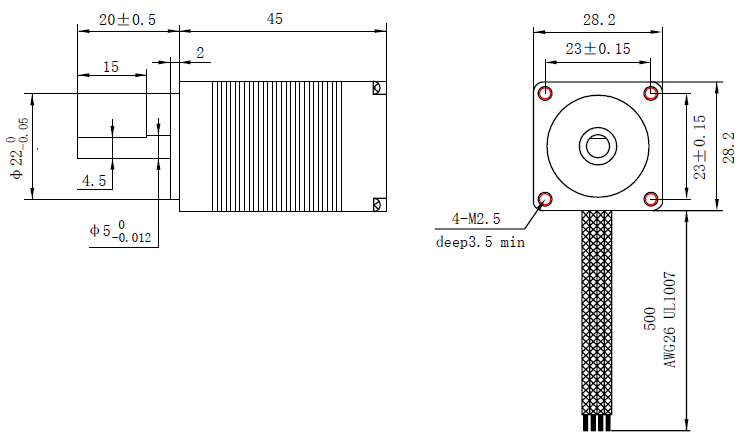

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
