Robot Motor NEMA 11 Geared Stepper Low Backlash Planetary Gearbox Ratio 20

Robot Motor NEMA 11 Geared Stepper Low Backlash Planetary Gearbox Ratio 20:1

$105.00

In Stock:

10

Model: 28AI51-0674S-HG20

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Geared Stepper Motor Ratio 20: This size 28mm geared NEMA 11 stepper motor has a body length 97.5mm with rated current 0.67A, integrated with a high precision & low backlash planetary gearbox of gear ratio 20:1, which can lead to high torque upto 2.2Nm/312.4oz-in and recommended rated speed 0-50rpm. It is very suitable for designed for the robotics but also can work for the applications that require high torque or low speed but high precision motion control.

NEMA 11 Geared Stepper Motor Ratio 20 SpecificationNEMA 11 Geared Stepper Motor Ratio 20

  • Part Number: 28AI51-0674S-HG20
  • Step Angle: 0.09deg
  • Bi/Unipolar: Bipolar
  • Holding Torque: 2.2Nm/312.4oz-in
  • Rated Current/phase: 0.67A
  • Frame Size: 28x28mm
  • Motor Length: 51mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 20:1
  • Efficiency: 94%
  • Backlash at No-load: 15arcmin
  • Gearbox Length: 46.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Stepper Drive: FLKH2D1228DC

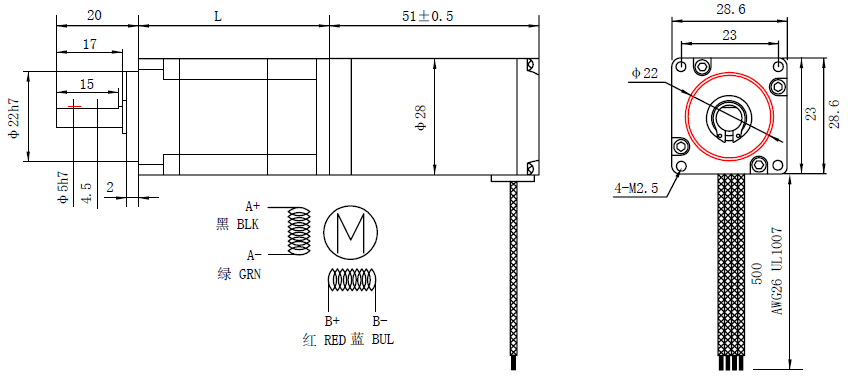

Overall Size

Robot Motor NEMA 11 Geared Stepper Low Backlash High Precise Planetary Gearbox

Gearbox Length (L) = 46.5mm

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
