Size 28mm NEMA 11 Dual Shaft Stepper Motor Bipolar 1.8deg 0.07Nm 1A 28x32mm with Rear Shaft

Size 28mm NEMA 11 Dual Shaft Stepper Motor Bipolar 1.8deg 0.07Nm 1A 28x32mm with Rear Shaft

$8.00

In Stock:

10

Model: 28AI32-1004D

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Dual Shaft Stepper Motor: This size 28mm NEMA 11 dual shaft hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 32mm. Each phase draws current 1.0A, allowing for a holding torque of 0.07Nm. A length of 13.5mm rear shaft is available.

NEMA 11 Dual Shaft Stepper Motor Specification

NEMA 11 Dual Shaft Stepper Motor

  • Part Number: 28AI32-1004D
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 32.8mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 13.5mm
  • D-cut Length: 13.5mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 110g
  • Stepper Drive: FLKH2D1228DC

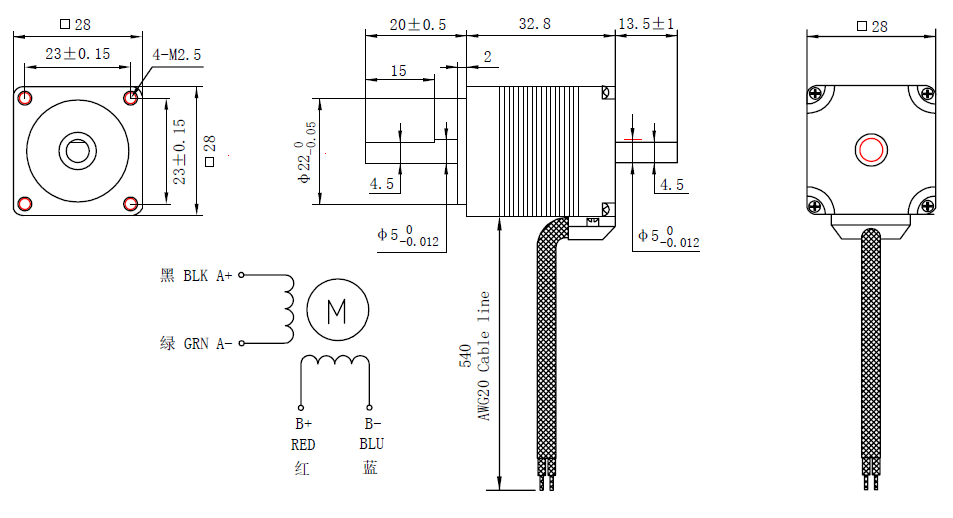

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
