Size 28mm NEMA 11 Dual Shaft Stepper Motor Bipolar 1.8deg 0.07Nm 1.0A 28x33mm with Rear Shaft

$8.00

In Stock:

10

Model: 28AI33-1004D

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 11 Dual Shaft Stepper Motor: This size 28mm NEMA 11 dual shaft hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 33mm. Each phase draws rated current 1.0A, allowing for a holding torque of 0.07Nm & optimal working speed upto 1000RPM. A length of 13.5mm rear shaft is available.

NEMA 11 Dual Shaft Stepper Motor Specification

  • Part Number: 28AI33-1004D
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 28x28mm
  • Body Length: 33mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 13.5mm
  • D-cut Length: 13.5mm
  • Number of Leads: 4
  • Lead Length: 540mm
  • Weight: 110g

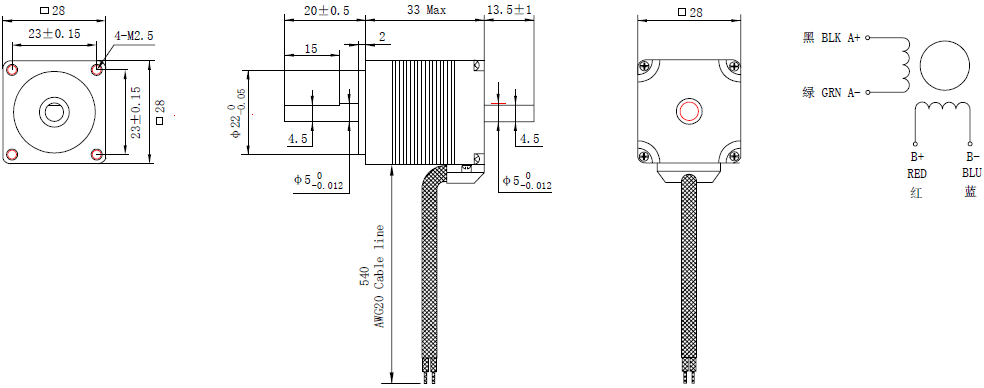

Overall Size

NEMA 11 Dual Shaft Stepper Motor
