Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.04Nm 0.6A 20x38mm 4 Wires Round Shaft

Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.04Nm 0.6A 20x38mm 4 Wires Round Shaft

$10.50

In Stock:

50

Model: 20AI38-0604A

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

High Torque NEMA 8 Stepper Motor: This strong size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 38mm. Each phase draws current 0.6A, allowing for a holding torque of 0.04Nm. Please note this motor has a 16mm bolt spacing & 15mm pilot circle and more details please refer to the data sheet of 20AI38-0604A.

High Torque NEMA 8 Stepper Motor Specification

  • Part Number: 20AI38-0604A
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 12.5ohms
  • Inductance: 5.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 38mm
  • Shaft Type: Round
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 60g

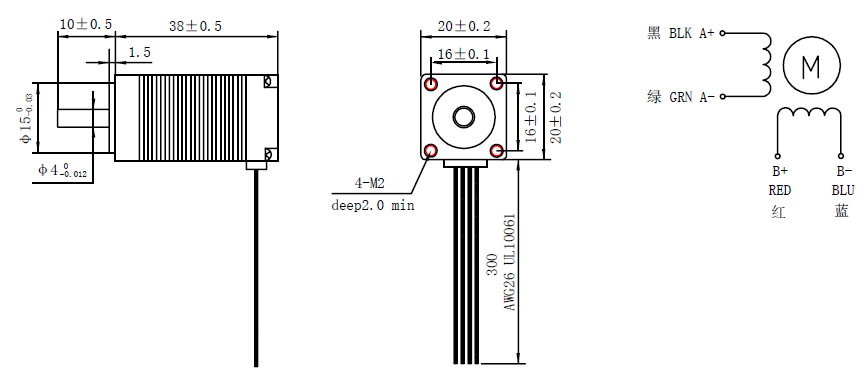

Overall Size

High Torque NEMA 8 Stepper Motor
