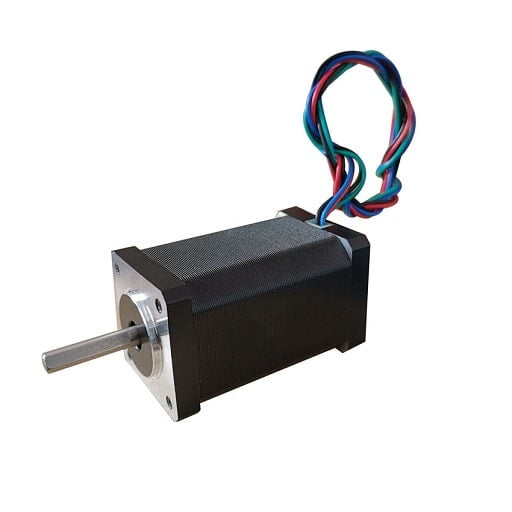

Size 35mm NEMA 14 Stepper Motor Bipolar 1.8deg 0.5Nm 1.2A 35x60mm 4 Wires

Size 35mm NEMA 14 Stepper Motor Bipolar 1.8deg 0.5Nm 1.2A 35x60mm 4 Wires

$10.00

In Stock:

50

Model: 35AI60-1204S

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

High Torque NEMA 14 Stepper Motor: This powerful size 35mm NEMA 14 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 60mm. Each phase draws current 1.2A, allowing for a good holding torque of 0.5Nm. It is widely used in 3D Printers, CNC Milling Machines, Laser Cutters, etc.

High Torque NEMA 14 Stepper Motor Specification

High Torque NEMA 14 Stepper Motor

  • Part Number: 35AI60-1204S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.5Nm
  • Rated Current/phase: 1.2A
  • Phase Resistance: 2.7ohms
  • Inductance: 2.4mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 60mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g
  • Stepper Drive: FLKH2D1228DC

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
