Size 57mm NEMA 23 High Precision Planetary Gearbox Reduction Brushless DC Motor 24V 180W 260RPM 6.9Nm

$99.00

In Stock:

10

Model: 57AI115-24V-HG15

Weight: 1.95KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

High Power Geared Motor 260RPM:  This compact size 57mm brushless dc motor has a rated voltage 24VDC and 180W rated power, integrated with a high precision planetary gearbox of gear ratio 15:1, which can lead to a high torque output 6.9Nm and a low speed 260RPM.

High Power Geared Motor 260RPM Specification

  • Part Number: 557AI115-24V-HG15
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Curent: 10.0A
  • Rated Power: 180W
  • Insulation Class: B
  • Reduction Ratio: 15:1
  • Rated Speed: 260RPM
  • Rated Torque: 6.9Nm
  • Frame Size: Φ57mm
  • Motor Length: 115mm
  • Gearbox Type: Planetary
  • Gearbox Backlash: 25arcmin
  • Gearbox Length(L): 63mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 22mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.95kg

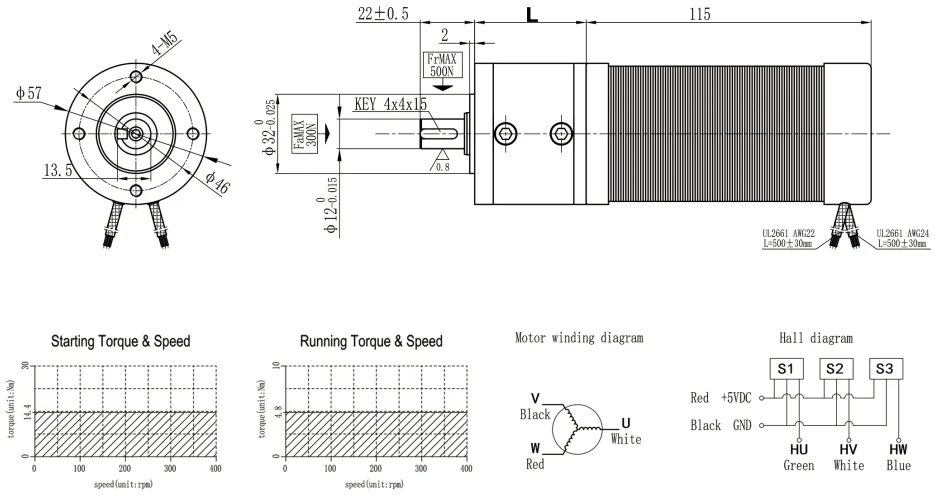

Overall Size

High Power Geared Motor 260RPM
