CNC Machine Stepper Motor NEMA 34 Bipolar 86x151mm 12Nm

CNC Machine Stepper Motor NEMA 34 Bipolar 86x151mm 12Nm/1700oz-in 6A 4 Leads

$55.00

In Stock:

10

Model: 86AI151-6004S

Weight: 5.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

CNC Machine NEMA 34 Stepper Motor 12Nm: This size 86mm powerful NEMA 34 hybrid bipolar stepper motor has a 1.8° step angle(200 steps/revolution) and a body length 151mm. Each phase draws a current 6.0A, allowing for a strong holding torque of 12Nm/1700oz-in. This high torque NEMA 34 stepper motor is absolutely an ideal choice for big CNC machines/engraving machine and strong robots.

CNC Machine NEMA 34 Stepper Motor 12Nm SpecificationCNC Machine NEMA 42 Stepper Motor 12Nm

  • Part Number: 86AI151-6004S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 12Nm/1700oz-in
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.75ohms
  • Inductance: 11mH
  • Driving Voltage: 24-72VDC
  • Frame Size: 86x86mm
  • Body Length: 151mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 5.4kg
  • Stepper Drive: OK2D872

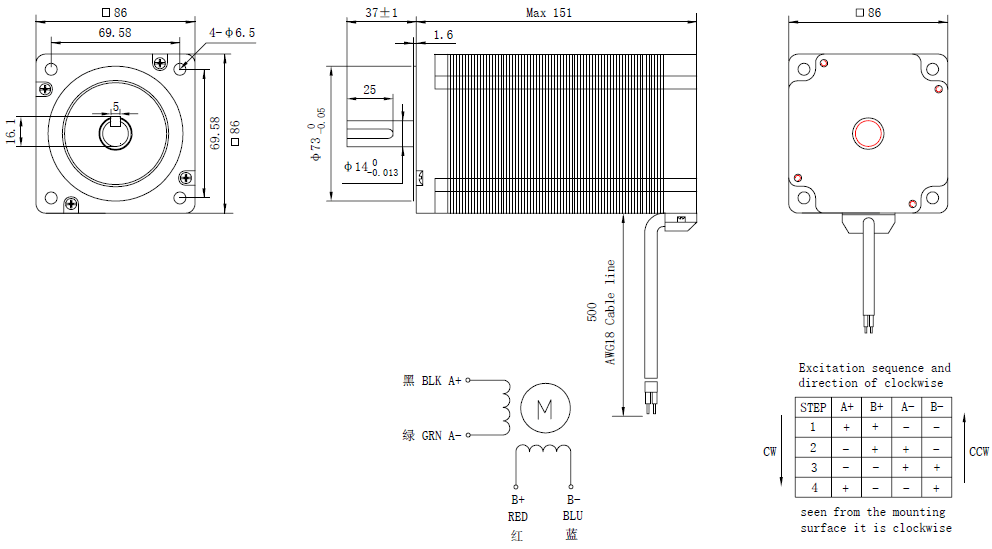

Overall Size

86AI151-6004S Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
